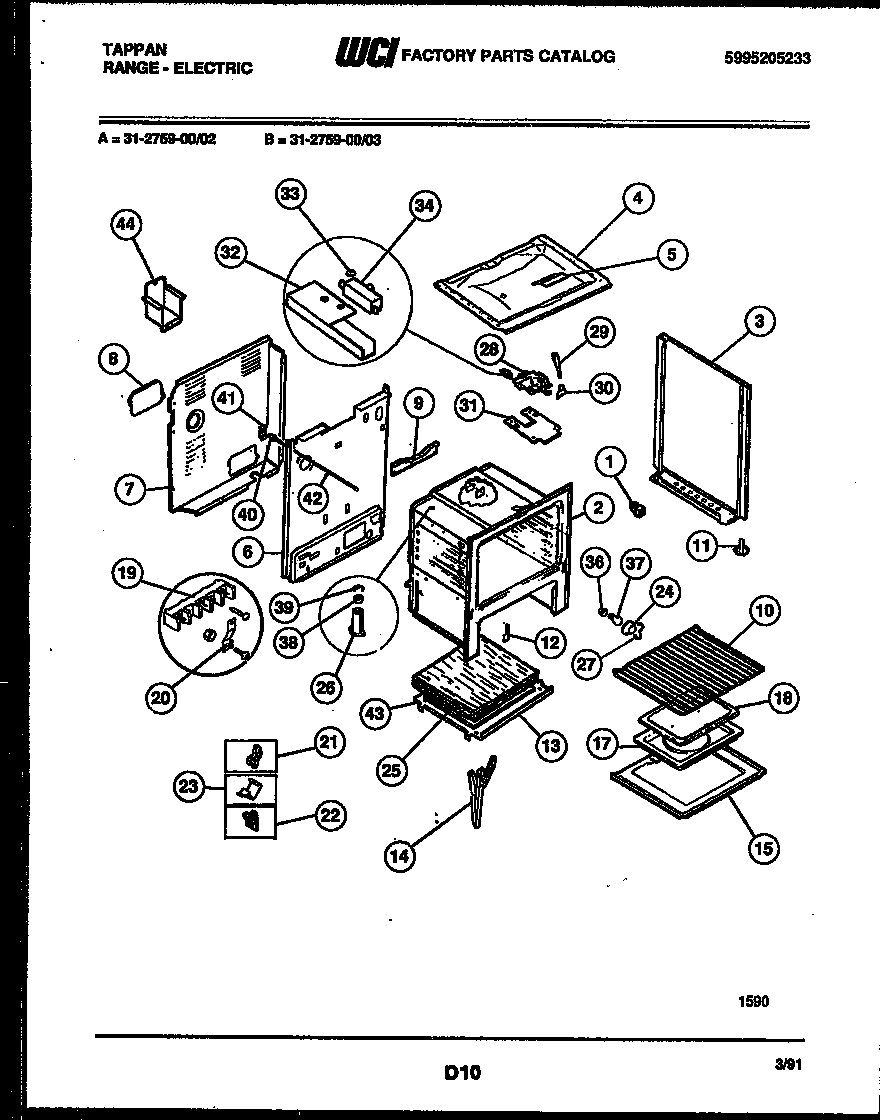

31-2759-00-03 06 – BODY PARTS

Products

Position	Product
*46389	3203550 Frigidaire Oven Plug
*46389	WCI 5303206618
*46389	ANTI-TIP KIT (NOT ILLUSTRATED)
*46389	DIAGRAM WIRING (NOT FOR PURCHASE) (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3A	PNL-B/S-RH-WHITE
3A	WCI 5303269543
3	PNL-B/S-LH-WHITE
3	WCI 5303269545
4	WCI 5303271658
5	WCI 08067757
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHAN-DOOR HINGE (2)
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27A	INSULATION, OVEN TOP
27C	3131903 Frigidaire Door/Drawer Bumper
27	RETAINER-GLASS
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
28	WCI 5303015361
29	WCI 5303131357
30	WCI 3203218
30A	WCI 08013188
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	WCI 3131672
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	WCI 5303209316
43C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
43B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
43A	INSULATION, OVEN WRAPPER
43	WCI 3200848
44	WCI 3203582
