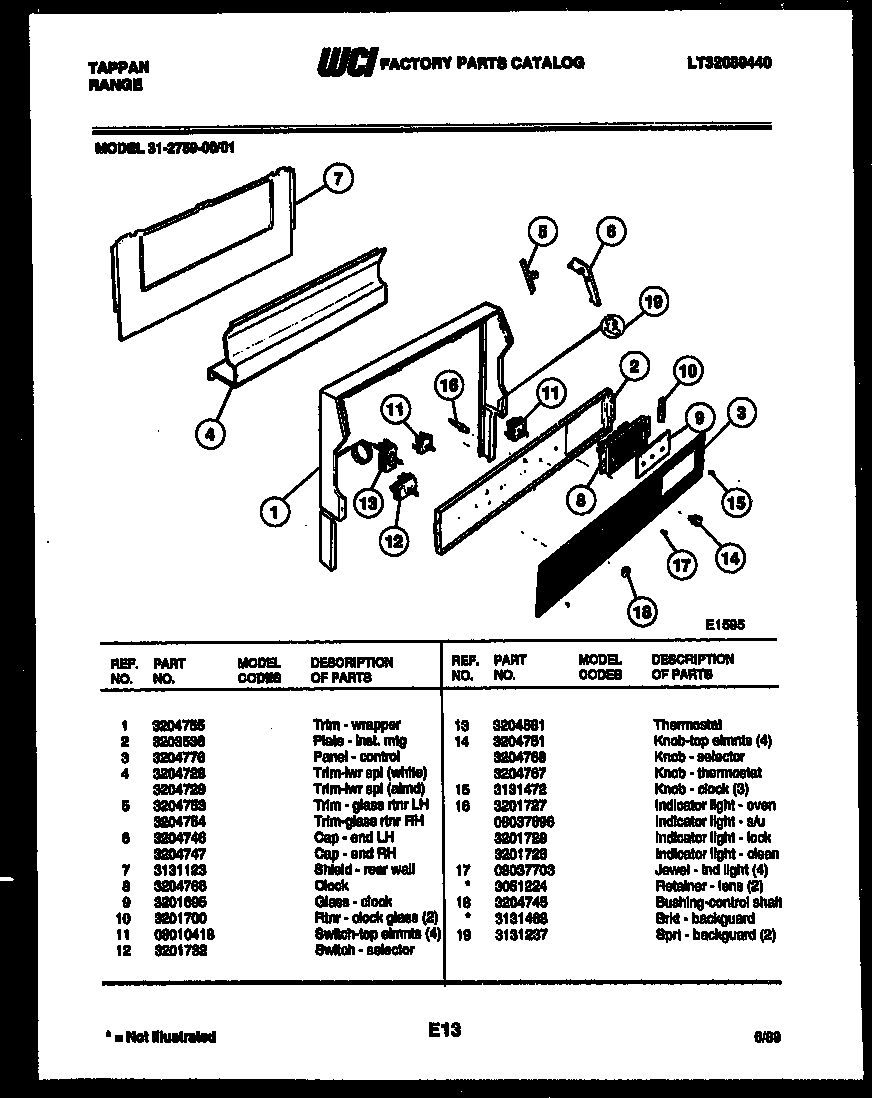

31-2759-23-01 07 – BACKGUARD

31-2759-23-01 07 – BACKGUARD

Written by

in

31-2759-23-01 07 – BACKGUARD

Products

PositionProduct
1WCI 3204755
2PLATE-INSTRUMENT MTG
3WCI 3204776
4WCI 3204729
5TRIM-GLASS RETAINER,LH
5ATRIM-GLASS RETAINER,RH
6WCI 3204746
6AWCI 3204747
7SHIELD-BACKGUARD,REAR WALL
8ELECTRICAL CLOCK
9WCI 3201695
10RETAINER, CLOCK GLASS, (2)
11WCI 08010418
12WCI 3201732
13THERMOSTAT-OVEN
14BWCI 3204767
14AWCI 3204768
14WCI 3204751
15KNOB-CLOCK
16BINDICATOR LIGHT-LOCK (1)
16ALIGHT – IND 125 V (2)
16CLIGHT/LAMP, INDICATOR, BLUE, 250 V
16INDICATOR LITE, OVEN (BLACK)
17ARETAINER-LENS
17WCI 08037703
18WCI 3204745
18AWCI 3131468
19SUPPORT-BACKGUARD (2)
