31-2769-00-01 06 – BACKGUARD

31-2769-00-01 06 – BACKGUARD

Written by

in

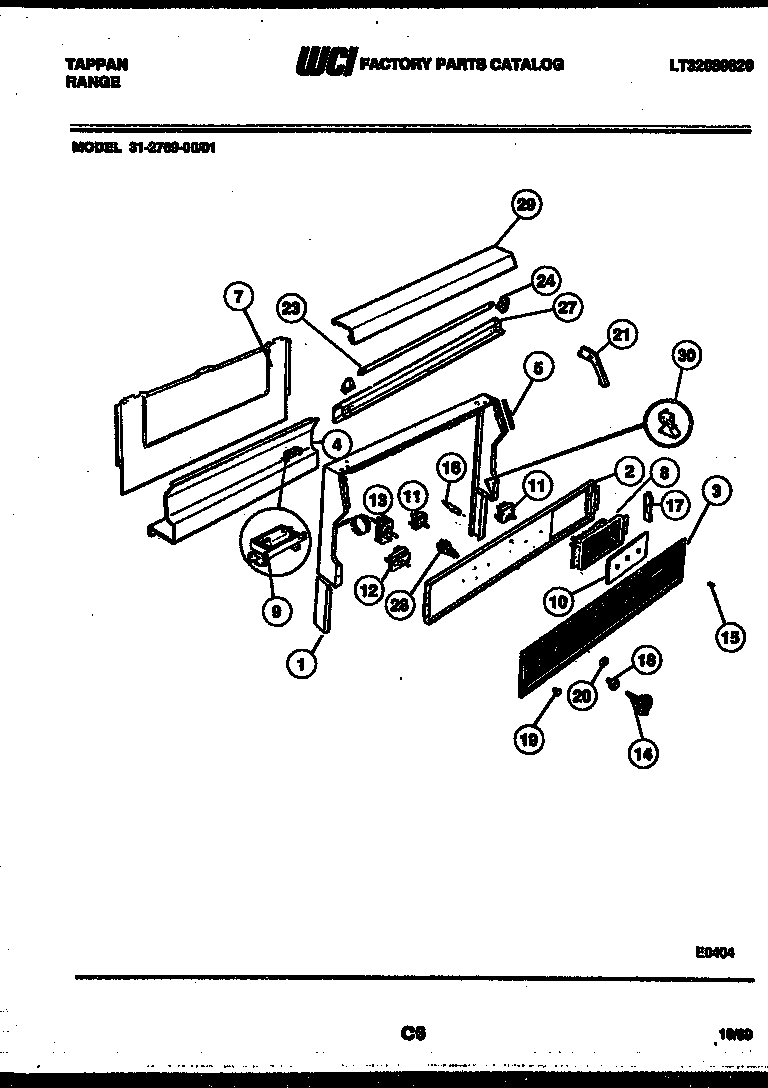

31-2769-00-01 06 – BACKGUARD

Products

PositionProduct
*33248WCI 3131468
*33248RETAINER-LENS
1WCI 3204862
2PLATE-INSTRUMENT MTG
3WCI 3204861
4WCI 5303206629
5TRIM-GLASS RETAINER,LH
5TRIM-GLASS RETAINER,RH
7SHIELD-BACKGUARD,REAR WALL
8ELECTRICAL CLOCK
9WCI 3051115
10WCI 3201695
11WCI 08010418
12WCI 3201732
13THERMOSTAT-OVEN
14BWCI 3204767
14AWCI 3204768
14WCI 3204751
15KNOB-CLOCK
16LIGHT/LAMP, INDICATOR, BLUE, 250 V
16LIGHT – IND 125 V (2)
16INDICATOR LITE, OVEN (BLACK)
16INDICATOR LIGHT-LOCK (1)
17RETAINER, CLOCK GLASS, (2)
18WCI 3204745
19WCI 08037703
20BEZEL – SWITCH (2)
21WCI 3204609
21AWCI 3204610
23BULB-FLUOR
24RECEPTACLE-FLU LT LH
24ARECEPTACLE-FLU LT RH
27WCI 3131277
28WCI 3200479
28ASWITCH-FLUOR LIGHT
29WCI 3204614
30SUPPORT-BACKGUARD (2)
