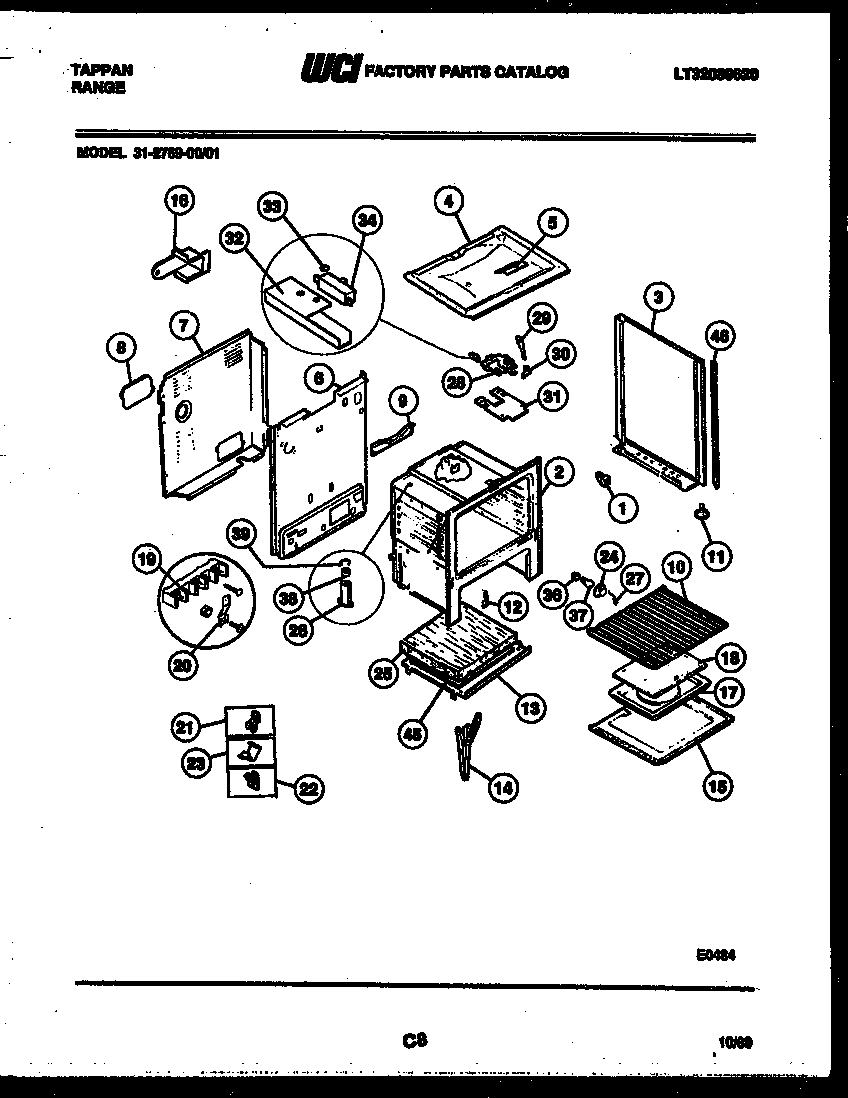

31-2769-00-01 07 – BODY PARTS

Products

Position	Product
*33253	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*33253	ANTI-TIP KIT (NOT ILLUSTRATED)
*33253	INSULATION, OVEN TOP
*33254	WCI 5303206618
*33253	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*33254	3203550 Frigidaire Oven Plug
1	SPACER-BODYSIDE, (8)
3	PNL-BODYSIDE LH-WHITE
3	PNL-BODYSIDE RH-WHITE
4	WCI 3051109
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHANL-DR HNG (2)
15	PANEL-OVEN BOTTOM
16	WCI 3203582
17	WCI 3013568
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27D	SCREW – CHANNEL MTG (NON-ILLUSTRATED)
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27	RETAINER-GLASS
27A	INSULATION, OVEN WRAPPER
27C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 3015361
29	WCI 3131357
30A	WCI 08013188
30	WCI 3203218
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	WCI 3131672
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
45	WCI 3200848
