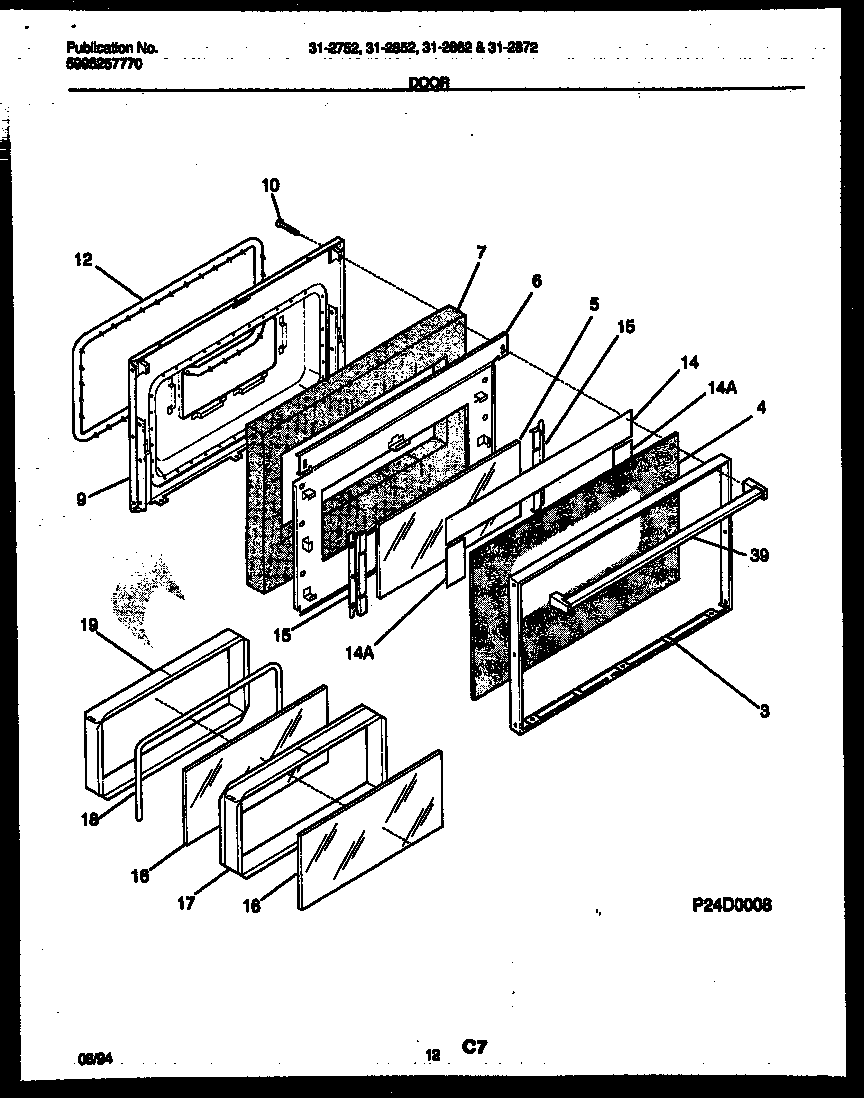

31-2852-00-02 07 – DOOR PARTS

31-2852-00-02 07 – DOOR PARTS

Written by

in

31-2852-00-02 07 – DOOR PARTS

Products

PositionProduct
*10576RIVET-POP, WARING-PLATE
*10576WCI 316065300
*10576SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*105765303300265 Frigidaire Oven Screw
*105765303271648 Frigidaire Oven Screw
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14A5303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39HANDLE-DOOR, OVEN
