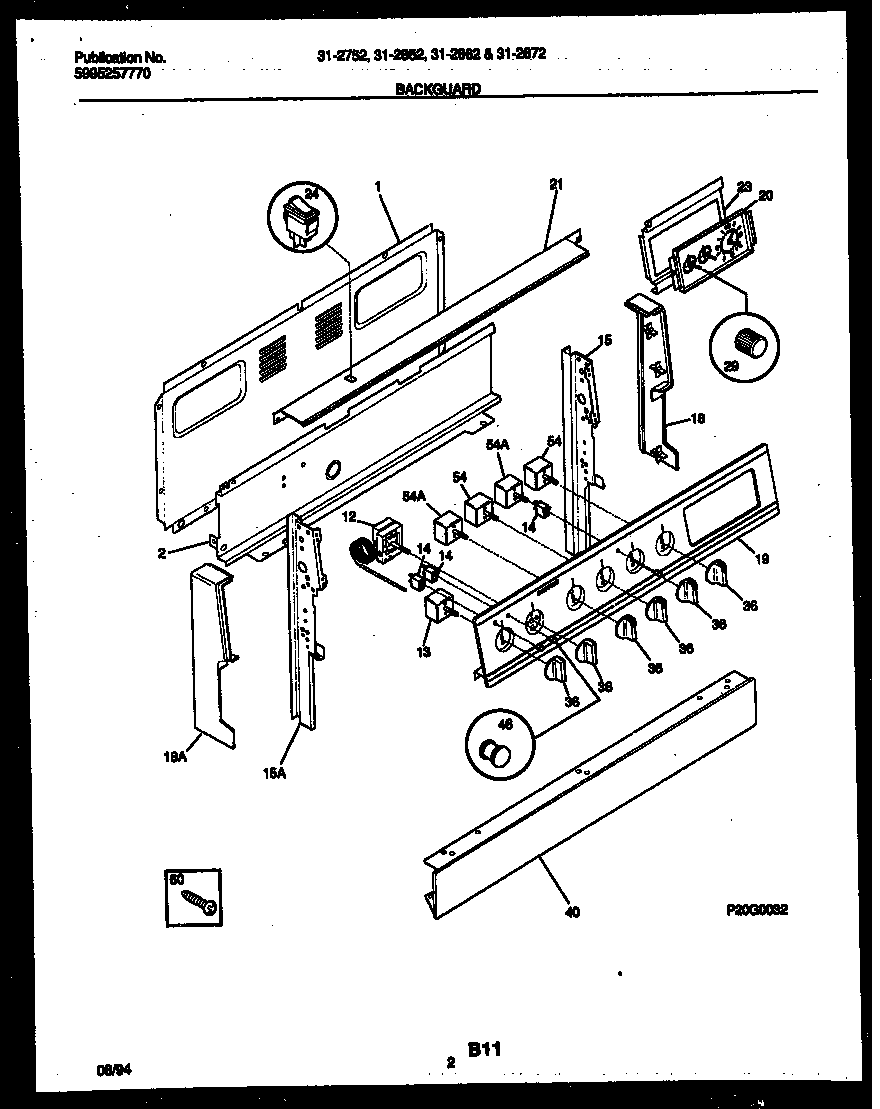

31-2852-23-02 02 – BACKGUARD

31-2852-23-02 02 – BACKGUARD

Written by

in

31-2852-23-02 02 – BACKGUARD

Products

PositionProduct
*10574WCI 5303281584
1WCI 316075201
2WCI 316015907
12THERMOSTAT-OVEN
13WCI 316023200
14316022503 Frigidaire Light Lamp P-1
15AWCI 316023111
15WCI 316023110
18ACAP-END-LH
18CAP-END-RH
19PANEL-CONTROL, METAL
20CLOCK/TIMER, ANALOG 3 STEM
21WCI 316014801
23WCI 316015005
245308015487 Frigidaire Switch-Oven Light
29WCI 316029000
36WCI 316015200
40WCI 316009254
46WCI 316040200
545303935086 Frigidaire Oven Top Burner Switch Kit
54A316436001 Frigidaire Oven Range Infinite Burner Switch
60WCI 5303288574
