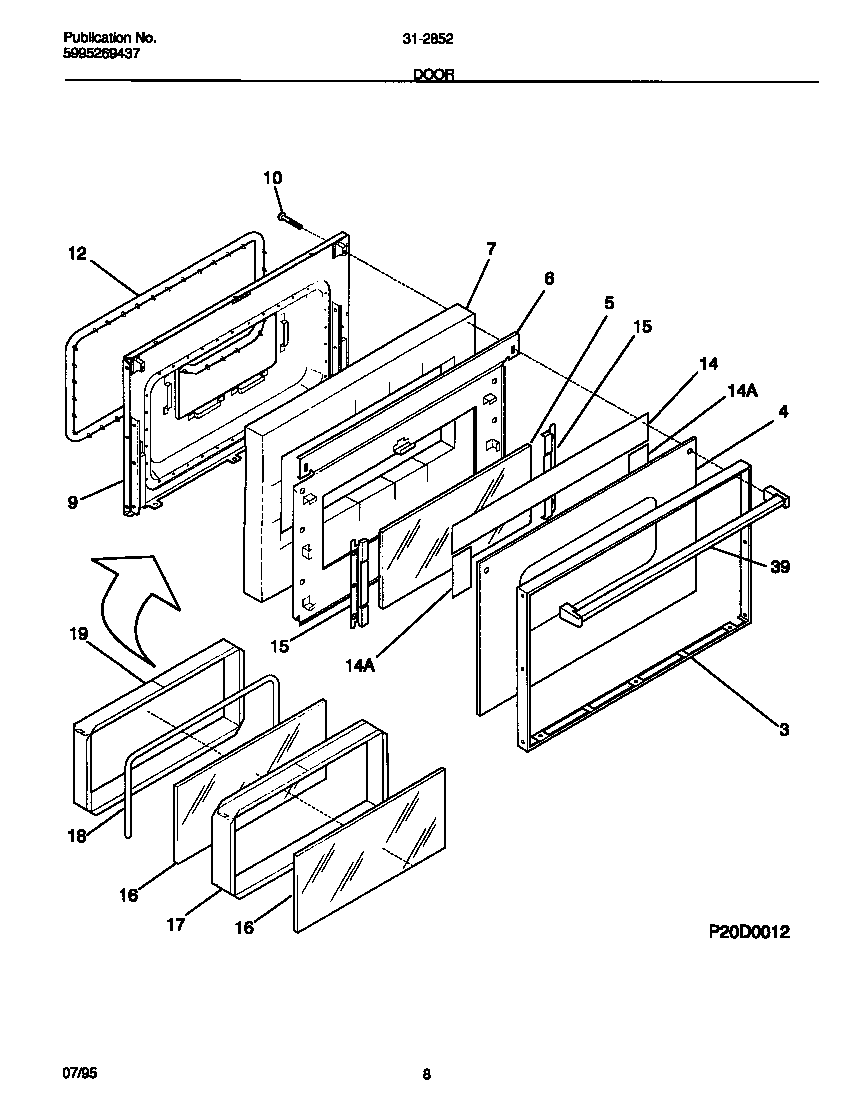

31-2852-23-03 05 – DOOR

31-2852-23-03 05 – DOOR

Written by

in

31-2852-23-03 05 – DOOR

Products

PositionProduct
*44131WCI 316065300
*44132SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*44134WCI 5303269859
*441335303300265 Frigidaire Oven Screw
*441355303285179 Frigidaire Oven Door Screw
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7WCI 316076400
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14A5303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39HANDLE-DOOR, OVEN
