31-2977-00-01 04 – DOOR PARTS – Aparts

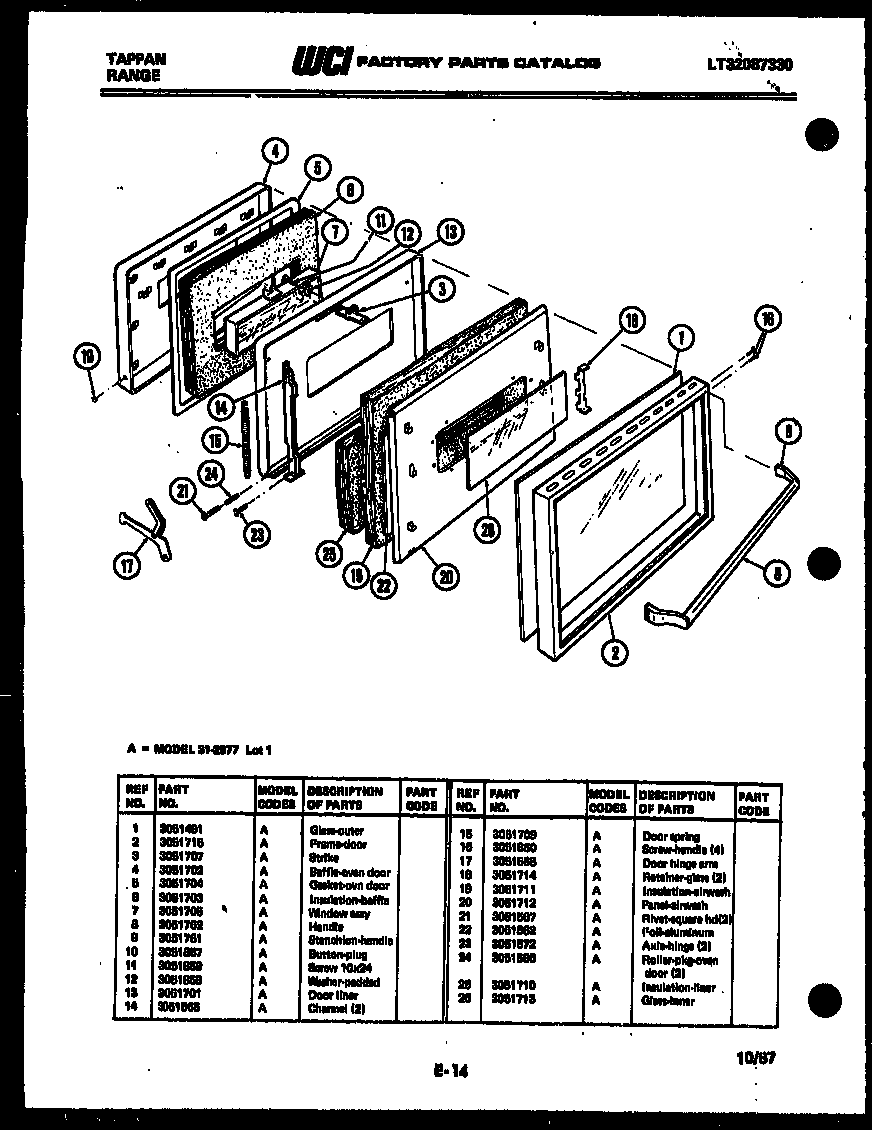

31-2977-00-01 04 – DOOR PARTS

Products

Position	Product
1	WCI 3051491
2	TRIM-FRAME
3	WCI 3051707
4	LINER-SHIELD
5	SEAL
6	INSUL.-DOOR SHIELD
7	GLASS-PACKAGE
8	WCI 3051762
9	WCI 3051761
10	WCI 3051857
11	WCI 3051859
12	WCI 3051858
13	LINER-DOOR
14	CHANNEL HINGE (2)
15	SPRING (2)
16	SCREW HANDLE (4)
17	DR HNGE ARM (2)
18	WCI 3051714
19	INSUL.-HEAT SHIELD
20	WCI 3051712
21	RIVET (2)
22	FOIL - ALUMINUM J
23	AXLE
24	WCI 3051566
25	INSUL.-DOOR LINER
26	BOTTOM REMOTE LITE SWITCH
