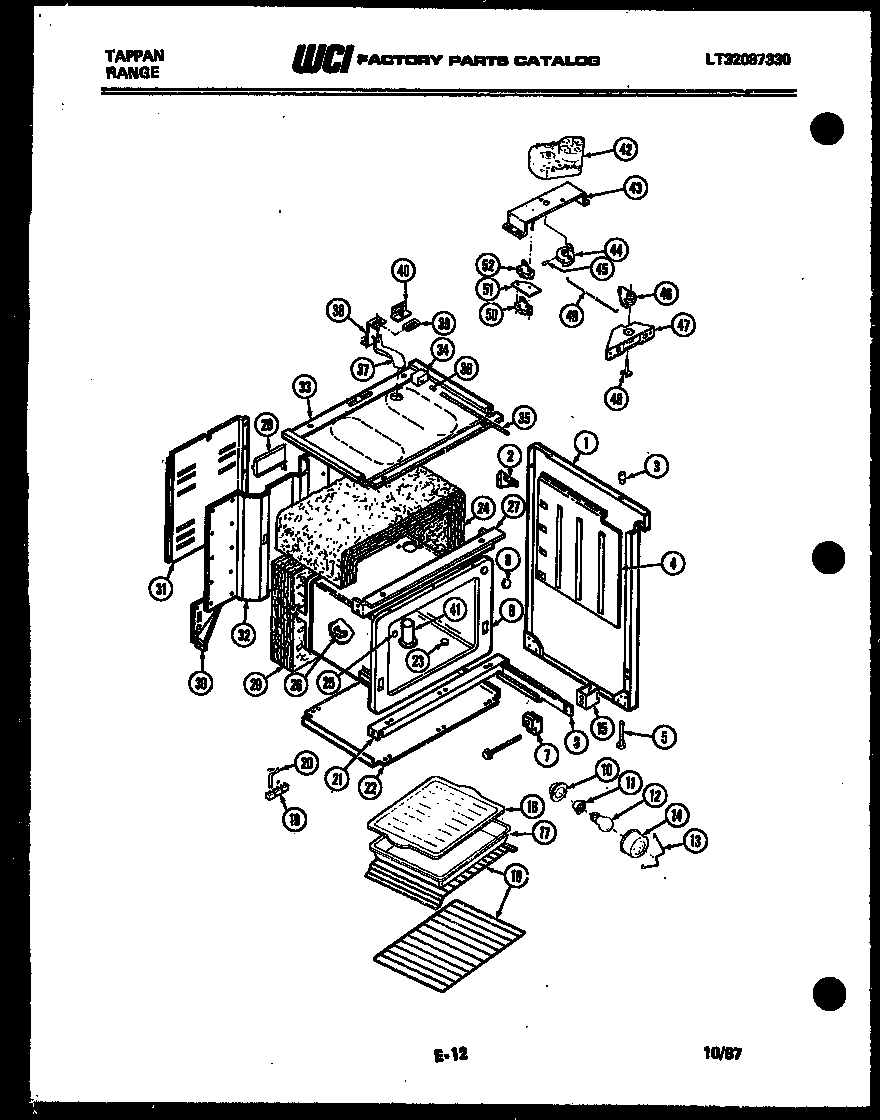

31-2977-23-01 03 – BODY PARTS

Products

Position	Product
1	PANEL-SIDE LH ALMD
1	PANEL-SIDE RH ALMD
2	GUSSET – BKGRD (2)
3	BUMPER-COOKTOP (4)
4	RETAINER, INSULATION (2)
5	SCREW-LEVELING (4)
6	RAIL, DRAWER LH
6	GLIDE-DRAWER-RH
7	GUIDE-DRAWER FRNT (2)
9	BODY
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 3051515
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3051562
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	WCI 3051493
18	RACK-OVEN
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 3051696
21	CHANNEL-OVEN SUPT
22	WCI 3051635
23	PLUG-BTTN 3/4“
24	WCI 3051628
25	PLUG BUTTON – THERMO BULB HOLE
26	BRACKET-THERMO BULB (2)
27	WCI 3051640
28	WCI 3051634
29	INSULATION-OVEN BACK
30	GUSSET – REAR (2)
30	WCI 3051637
31	COVER – WIRE
32	WCI 3051633
33	WCI 3051641
34	WCI 3051644
35	ROD-SWITCH
36	CAP-END SWITCH
37	WCI 3051655
38	BRACKET, VENT TUBE
39	GASKET, OVEN VENT TUBE
40	BRACKET-DOOR SW
41	WCI 3051629
42	WCI 3051650
43	WCI 3051878
44	WCI 3051879
45	WCI 3051880
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	AXLE
49	WCI 3051649
50	WCI 3051740
51	WCI 3051861
52	WCI 3051741
