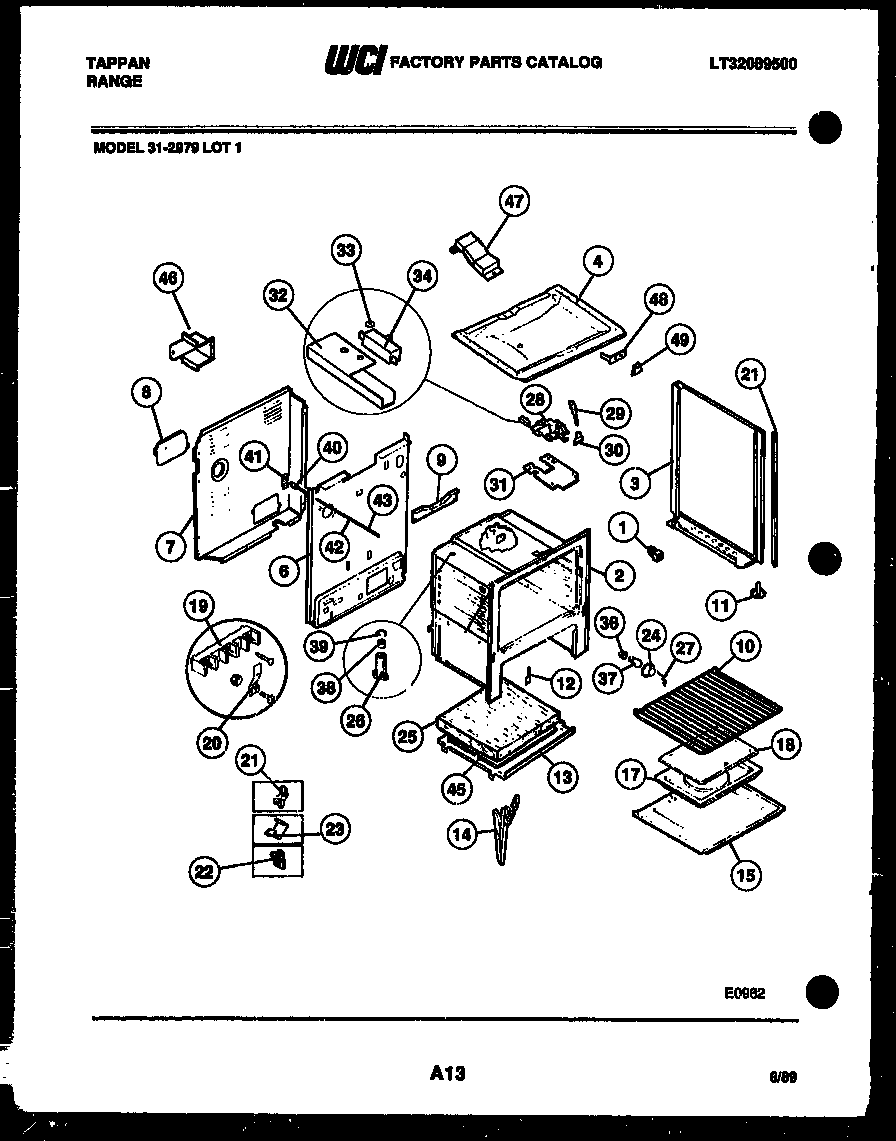

31-2979-00-01 03 – BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3	B/S-LH-(WHITE)
3A	B/S-RH-(WHITE)
4	WCI 3051109
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHANL-DR HNG (2)
15	PANEL-OVEN BOTTOM
17	WCI 3013568
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	TRIM MAIN TOP LH
27	RETAINER-GLASS
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
27A	INSULATION, OVEN TOP
28	WCI 3015361
29	WCI 3131357
30A	WCI 08013188
30	KNOB, LATCH
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	WCI 3131672
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	WCI 3202622
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
45A	INSULATION, OVEN WRAPPER
45	WCI 3200848
45C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
46	WCI 3203582
46B	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
46A	ANTI-TIP KIT (NOT ILLUSTRATED)
46C	3203550 Frigidaire Oven Plug
47A	WCI 3015337
47	WCI 3051254
48	WCI 3051242
48A	WCI 3051243
49	3205821 Frigidaire Clip
