31-3138-66-05 06 – BACKGUARD

31-3138-66-05 06 – BACKGUARD

Written by

in

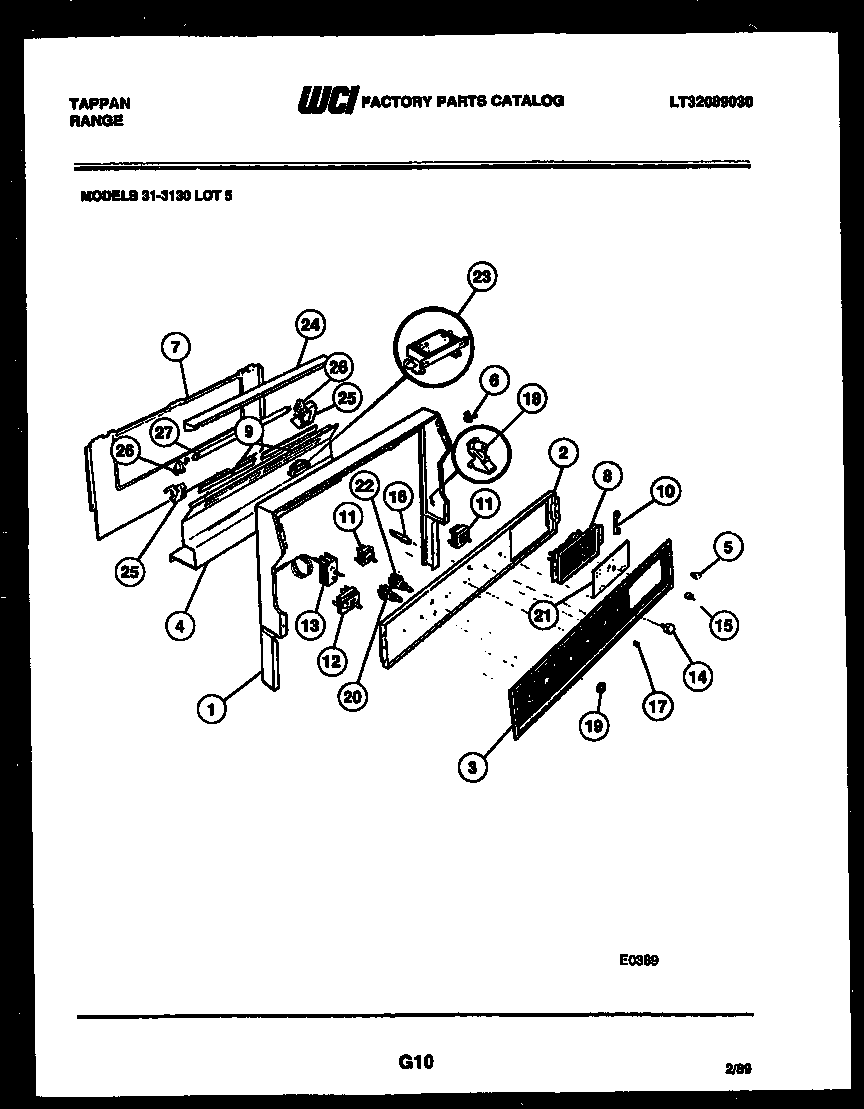

31-3138-66-05 06 – BACKGUARD

Products

PositionProduct
1WCI 3131127
2PLATE-INSTR MTG
3WCI 3051863
4TRIM-LOW SPLASHR
5NUT – DECOR (2)
6FSTNR-GLASS(2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3051411
9GLASS-WORK LITE (2)
10RETAINR-CLOCK LENS (2)
11SWITCH S/U (4)
12WCI 3016812
13WCI 3051323
14AWCI 3051488
14BKNOB-THERMO.
14KNOB-TOP ELM (4)
15WCI 358T201P01
16AINDICATOR LIGHT (4)
16INDICATOR-LITE OVN
17ARETAINER-LENS
17LENS-IND LIGHT (2)
18SUPPORT-BACKGUARD (2)
19WCI 045T071P01
20SWITCH-OV LT
21GLASS-CLOCK
22SW.-FLUOR. LT.
23WCI 3051115
24SHIELD-FLUOR LT.
25ABRKT-FLUOR LT MTG RH
25BRKT-FLUOR LT MTG LH
26ARECEPTACLE-FLU LT RH
26RECEPTACLE-FLU LT LH
27BULB-FLUOR
