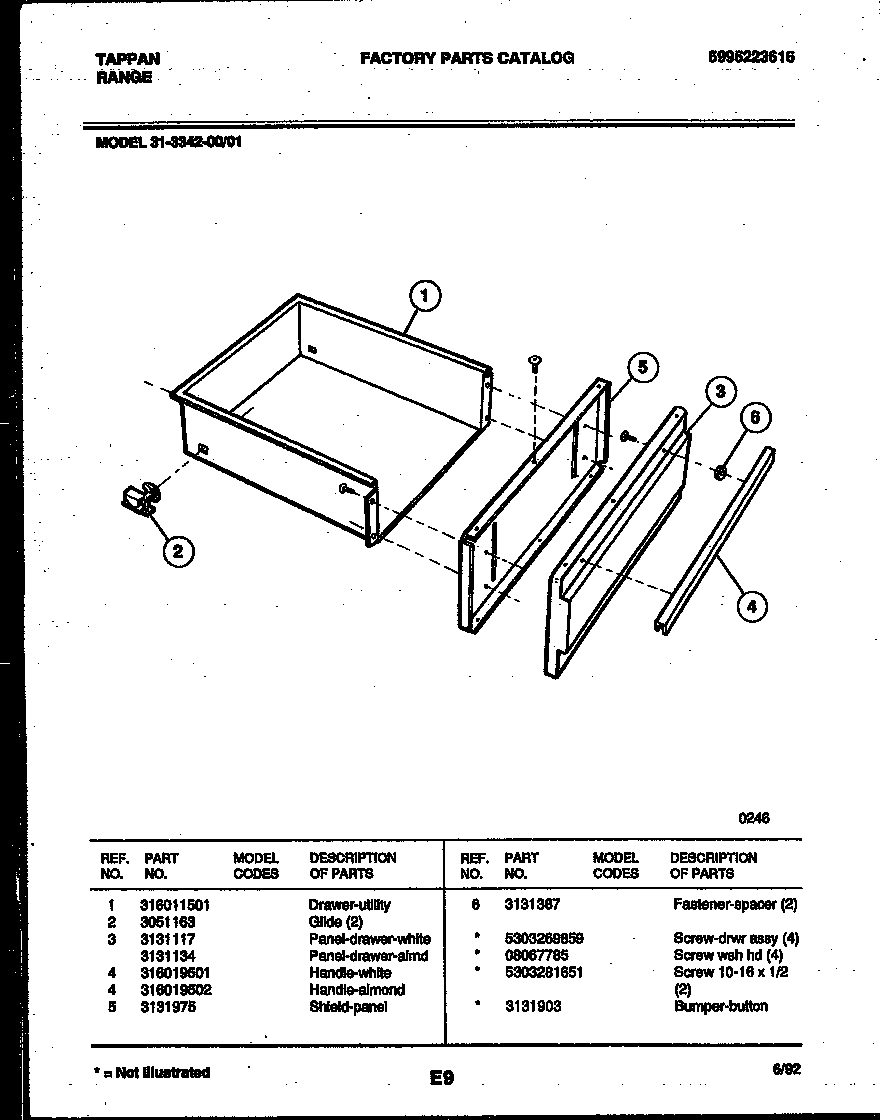

31-3342-00-01 05 – DRAWER PARTS

Written by

Products

Position	Product
*73541	WCI 5303269859
*73541	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
*73541	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*73541	3131903 Frigidaire Door/Drawer Bumper
1	DRAWER-UTILITY
2	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
3	PNL-DRAWER (WHTE)
4	HANDLE-DRAWER, WHITE
5	SHIELD-PNL
6	FSTNR, SPACER (2)
