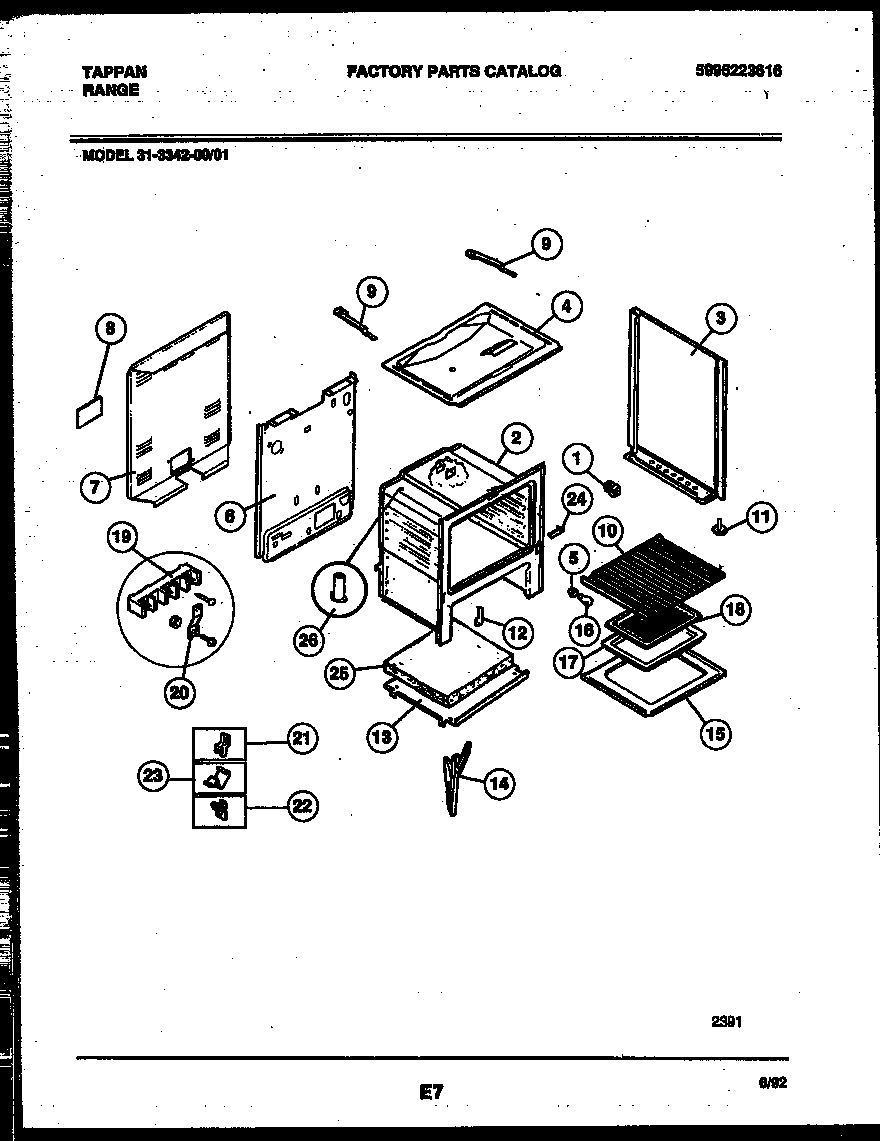

31-3342-23-01 04 – BODY PARTS

Products

PositionProduct
*735405303300265 Frigidaire Oven Screw
*73540WCI 5303206618
*73540INSULATION, OVEN WRAPPER
*73540INSUL – OVEN BACK (NON-ILLUSTRATED)
*735403131903 Frigidaire Door/Drawer Bumper
*73540ANTI-TIP KIT (NOT ILLUSTRATED)
*73540WCI 316002002
*73540316205500 Frigidaire Oven Nut
*735403203550 Frigidaire Oven Plug
1SPACER-BODYSIDE, (8)
3AWCI 5303269543
3WCI 5303269545
4WCI 5303271756
5316116400 Frigidaire Oven Light Socket
6BACK-MAIN, AUTOLATCH
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9BRACKET-HINGE, MAIN TOP, LH
9BRACKET-HINGE, MAIN TOP RH
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14Hinge,oven door ,(2)
15PANEL-OVEN BOTTOM
16316538904 Frigidaire Oven Lamp Light
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 5303283907
