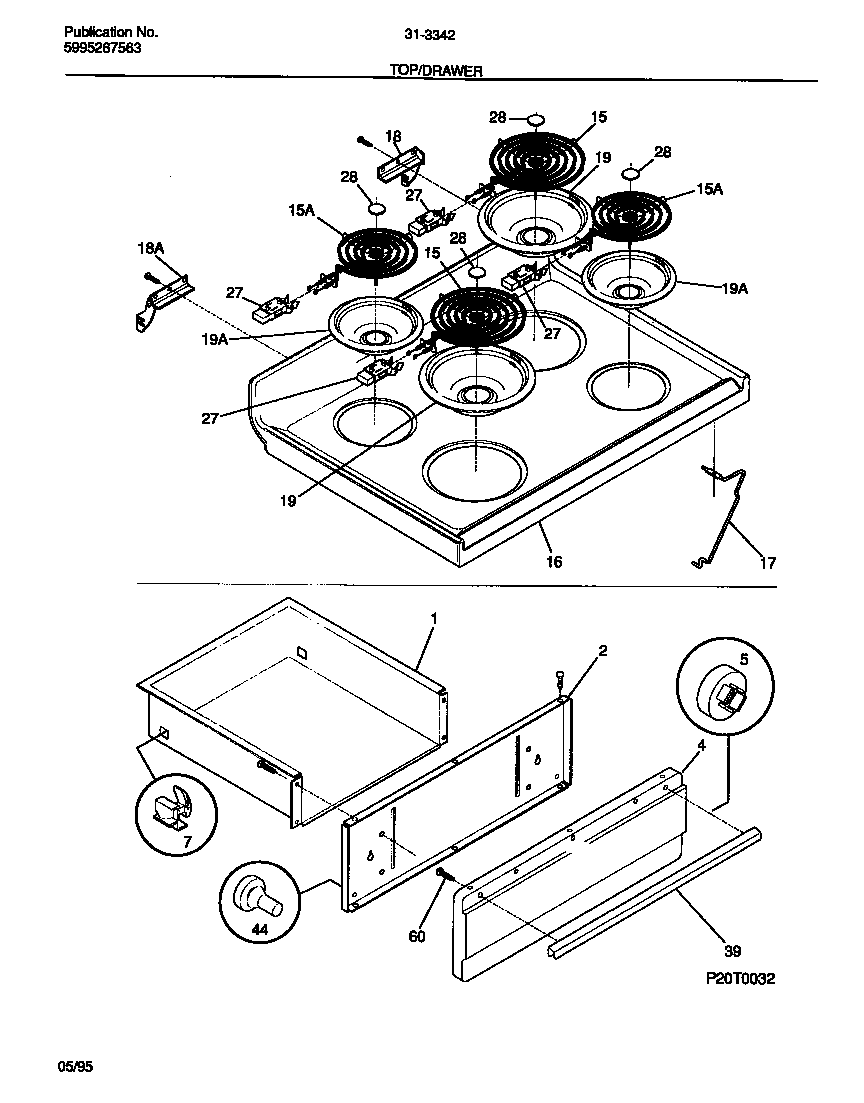

31-3342-23-02 04 – TOP/DRAWER

31-3342-23-02 04 – TOP/DRAWER

Written by

in

31-3342-23-02 04 – TOP/DRAWER

Products

PositionProduct
*58767316058601 Frigidaire Oven Clip
*58769131243700 Frigidaire Screw
*58768WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
28AMEDALLION, STAINLESS STEEL, SURF ELEM
28B5303017715 Frigidaire Medallion
39HANDLE-DRAWER, ALMOND
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
