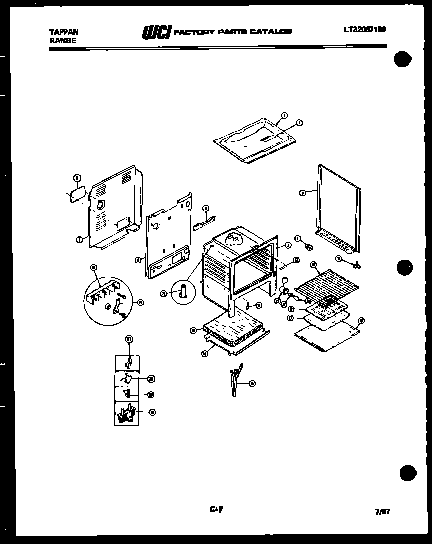

31-3347-00-01 02 – BODY PARTS

Products

Position	Product
1	WCI 665T188P02
3	PNL. B/S (LH WHITE)
3	PNL. B/S (RH WHITE)
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	CVR-LWR ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	WCI 3051398
14	CHANL-DR HNG (2)
15	WCI 3051104
16	FUSE-THERMO CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	COVER FRNT MAIN (NON-ILLUSTRATED)
25	316403803 Frigidaire Insulation
26	WCI 3051344
27D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27E	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27B	INSULATION-BACK (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
27	316116400 Frigidaire Oven Light Socket
27A	WCI 3131201
28	TUBE-OVEN LIGHT
29	316538904 Frigidaire Oven Lamp Light
