31-3347-66-01 03 – BACKGUARD

31-3347-66-01 03 – BACKGUARD

Written by

in

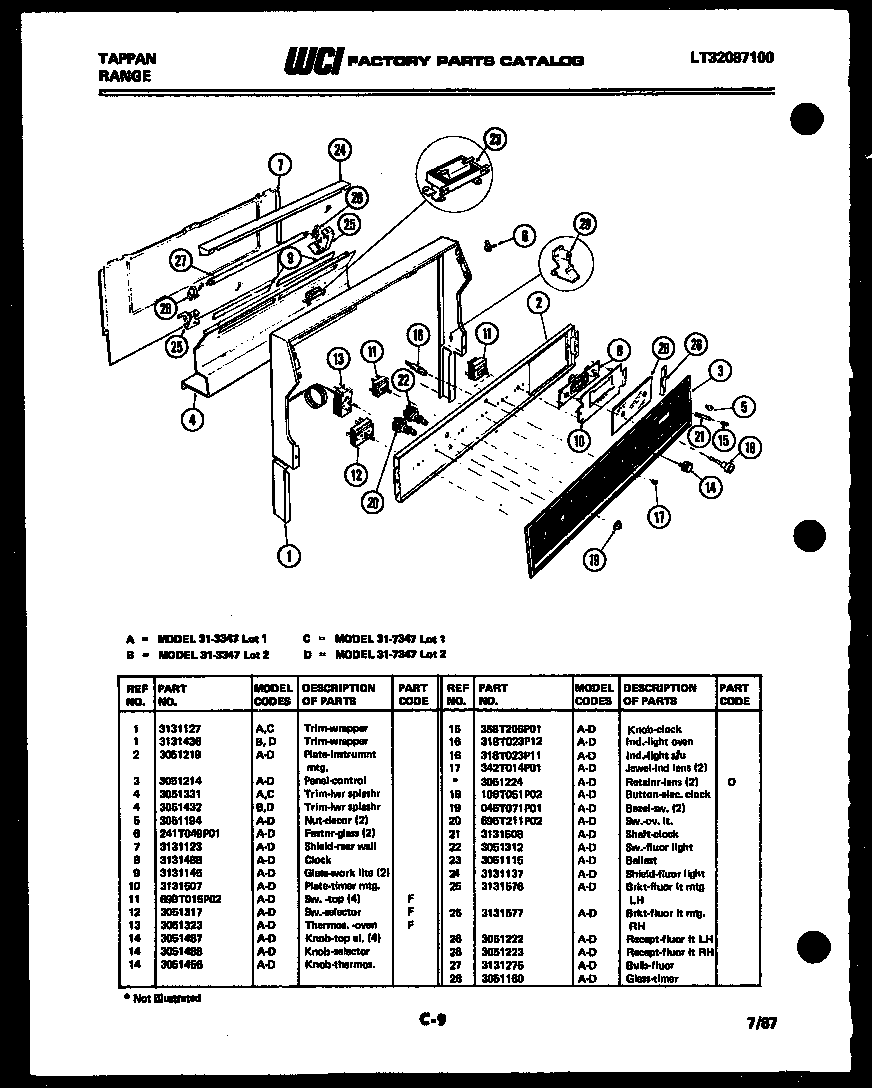

31-3347-66-01 03 – BACKGUARD

Products

PositionProduct
1WCI 3131127
2PLATE-INSTR MTG
3WCI 3051214
4WCI 3051432
4WCI 3051331
5NUT – DECOR (2)
6FSTNR-GLASS(2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3131488
9GLASS-WORK LITE (2)
10WCI 3131507
11SWITCH S/U (4)
12WCI 3051317
13WCI 3051323
14WCI 3051488
14KNOB-TOP ELM (4)
14KNOB-THERMO.
15WCI 358T206P01
16INDICATOR LIGHT (4)
16INDICATOR-LITE OVN
17ARETAINER-LENS
17LENS-IND LIGHT (2)
18WCI 106T051P02
19WCI 045T071P01
20SWITCH-OV LT
21WCI 3131508
22SW.-FLUOR. LT.
23WCI 3051115
24SHIELD-FLUOR LT.
25BRKT-FLUOR LT MTG RH
25BRKT-FLUOR LT MTG LH
26RECEPTACLE-FLU LT LH
26RECEPTACLE-FLU LT RH
27BULB-FLUOR
28WCI 3051160
