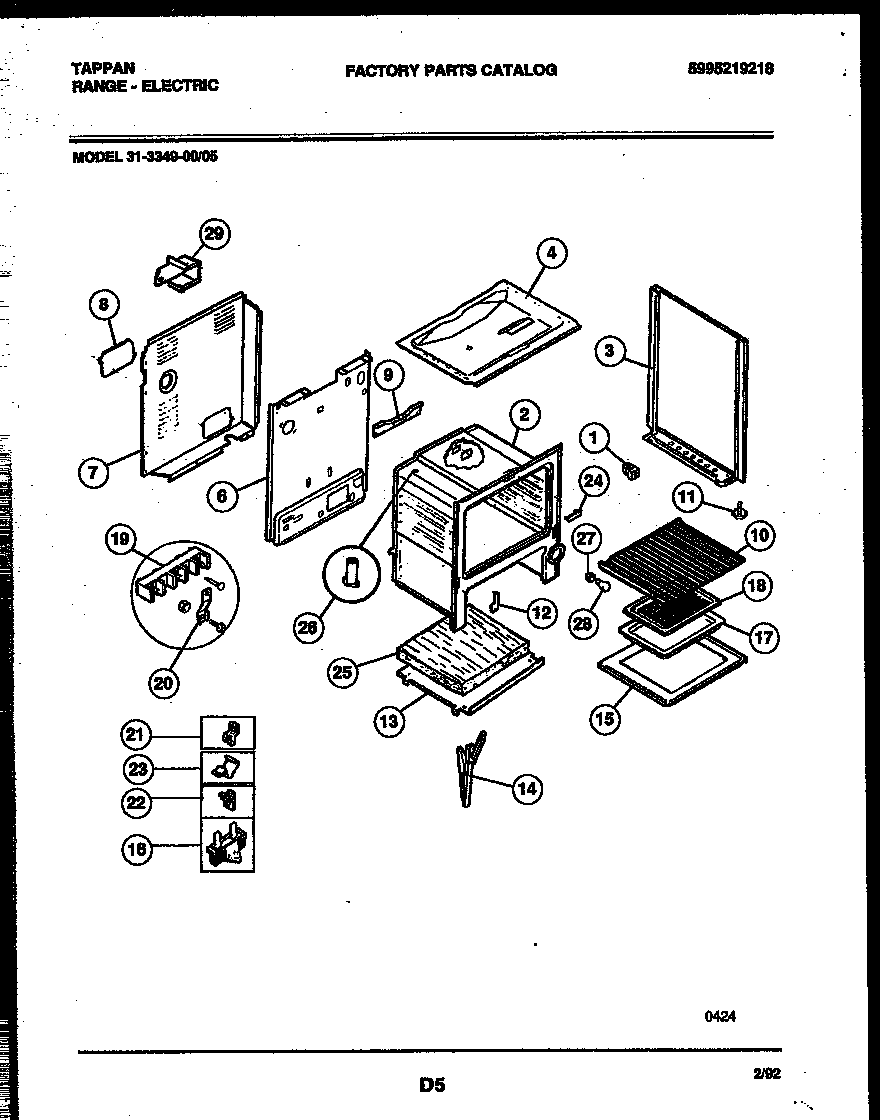

31-3349-00-05 07 – BODY PARTS

Products

PositionProduct
*66173WCI 19100210119
*66173WCI 5303206618
*661733203550 Frigidaire Oven Plug
*66173ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3APNL-B/S-RH-WHITE
3PNL-B/S-LH-WHITE
4WCI 5303271756
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14Hinge,oven door ,(2)
15PANEL-OVEN BOTTOM
16FUSE-THERMO CUTOUT
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 5303283907
27DSCREW-RETAINER MTG 8-18 X 3/8“ PH TR TP (2)
27316116400 Frigidaire Oven Light Socket
27AINSULATION, OVEN WRAPPER
27C3131903 Frigidaire Door/Drawer Bumper
27E316205500 Frigidaire Oven Nut
27BINSUL – OVEN BACK (NON-ILLUSTRATED)
28316538904 Frigidaire Oven Lamp Light
29WCI 3203582
