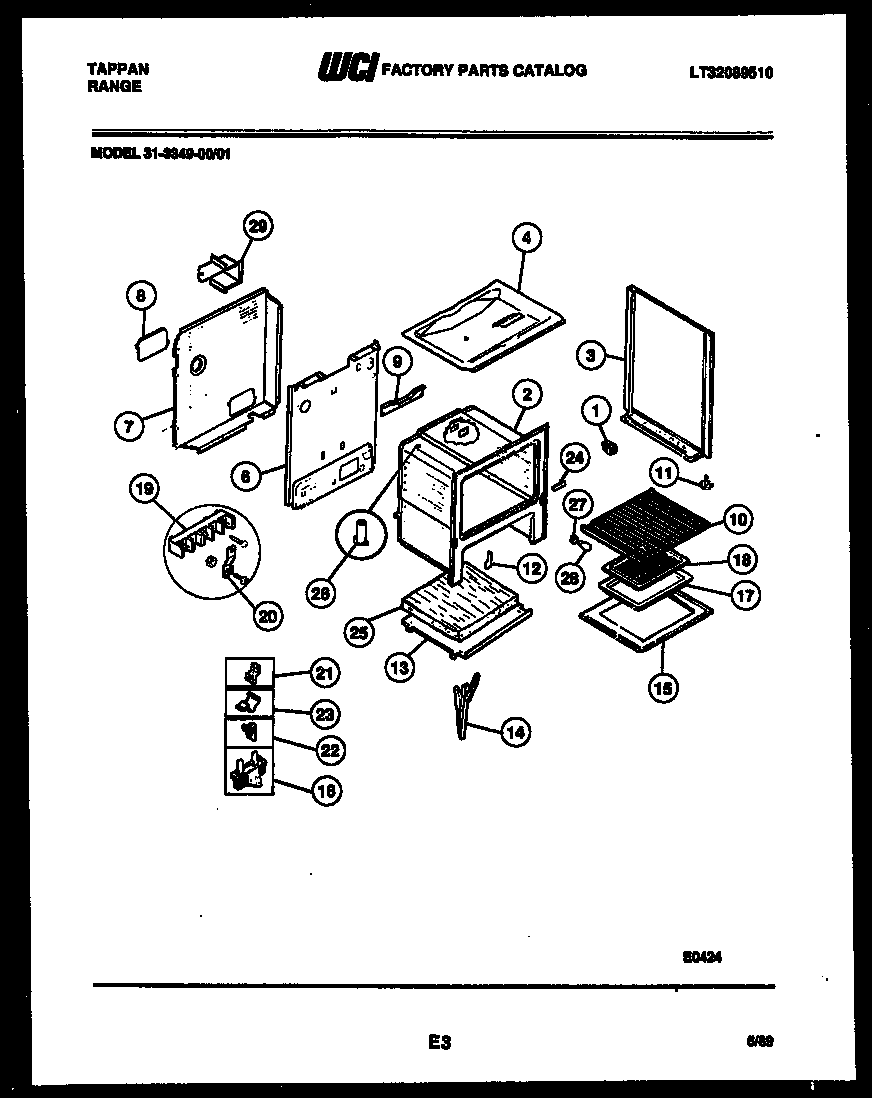

31-3349-23-01 07 – BODY PARTS

Products

PositionProduct
*26572BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
*26572ANTI-TIP KIT (NOT ILLUSTRATED)
*265723203550 Frigidaire Oven Plug
1SPACER-BODYSIDE, (8)
3APNL B/S-LH (ALMOND)
3PNL B/S-RH (ALMOND)
4WCI 3017926
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHANL-DR HNG (2)
15PANEL-OVEN BOTTOM
16FUSE-THERMO CUTOUT
17WCI 3013568
18WCI 3131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 08011708
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-BURNER BOX
25316403803 Frigidaire Insulation
26WCI 3051344
27C3131903 Frigidaire Door/Drawer Bumper
27EWCI 08067783
27DSCREW – CHANNEL MTG (NON-ILLUSTRATED)
27BINSUL – OVEN BACK (NON-ILLUSTRATED)
27AINSULATION, OVEN WRAPPER
27316116400 Frigidaire Oven Light Socket
28316538904 Frigidaire Oven Lamp Light
29WCI 3203582
