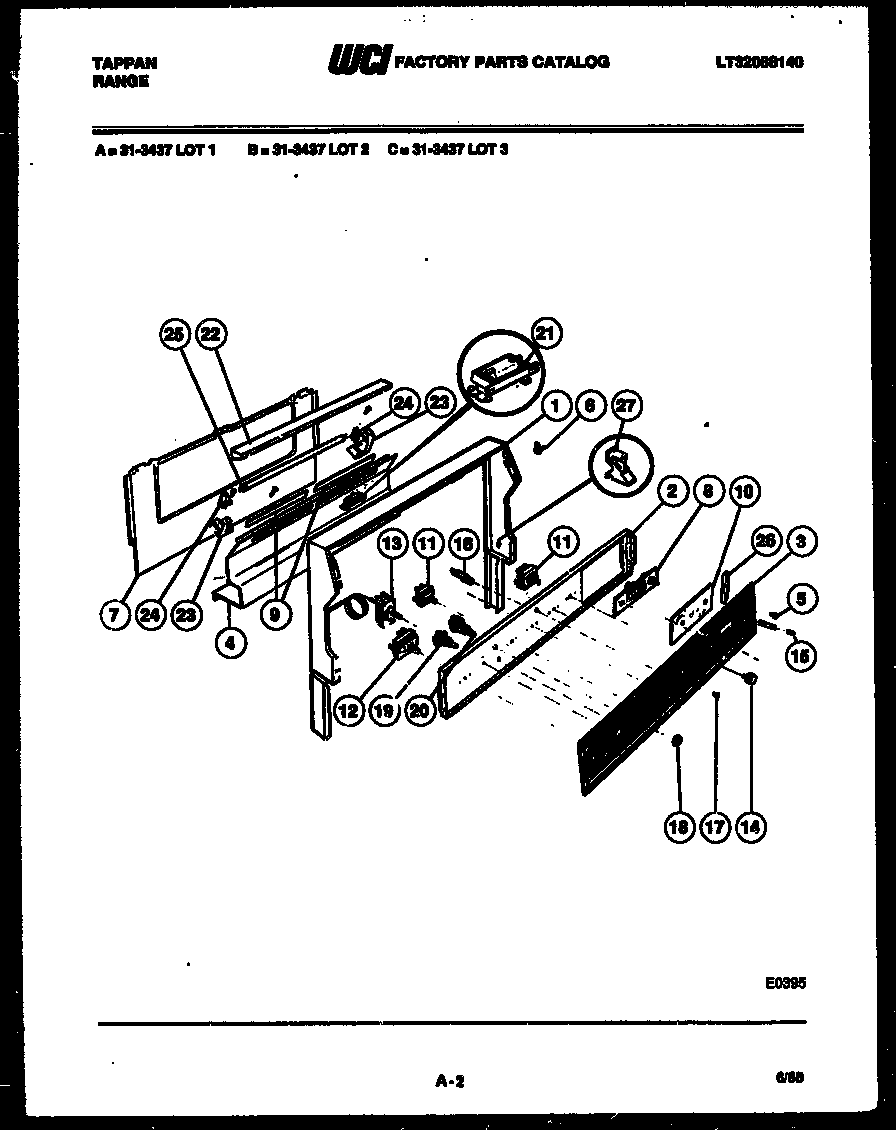

31-3437-00-03 02 – BACKGUARD

31-3437-00-03 02 – BACKGUARD

Written by

in

31-3437-00-03 02 – BACKGUARD

Products

PositionProduct
1WCI 3131436
2PLATE-INSTR MTG
3WCI 3051214
4WCI 3051432
5NUT – DECOR (2)
6FSTNR-GLASS(2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3051411
9GLASS-WORK LITE (2)
10GLASS-CLOCK
11SWITCH S/U (4)
12WCI 3051317
13WCI 3051323
14AWCI 3051488
14BKNOB-THERMO.
14KNOB-TOP ELM (4)
15WCI 358T201P01
16INDICATOR LIGHT (4)
16INDICATOR-LITE OVN
17ARETAINER-LENS
17LENS-IND LIGHT (2)
18WCI 045T071P01
19SWITCH-OV LT
20SW.-FLUOR. LT.
21WCI 3051115
22SHIELD-FLUOR LT.
23BRKT-FLUOR LT MTG LH
23ABRKT-FLUOR LT MTG RH
24RECEPTACLE-FLU LT LH
24ARECEPTACLE-FLU LT RH
25BULB-FLUOR
26RETAINR-CLOCK LENS (2)
27SUPPORT-BACKGUARD (2)
