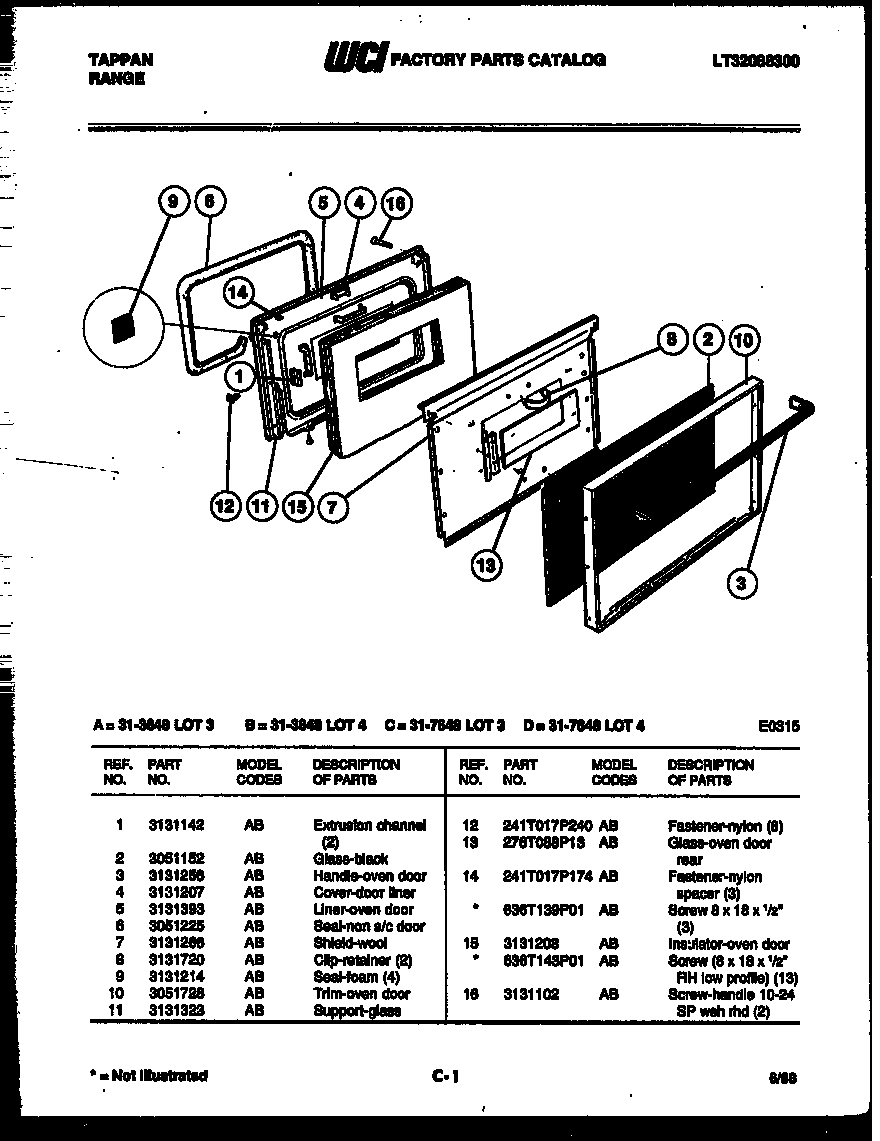

31-3648-23-03 06 – DOOR PARTS

Products

Position	Product
1	EXTRUSION-CHANNL
2	GLASS-OVEN DOOR, BLACK, OUTER
3	WCI 3131256
4	COVER DOOR LINER (NON-ILLUSTRATED)
5	WCI 3131393
6	5303202011 Frigidaire Door Seal
7	WCI 3131266
8	CLIP-RETAINING
9	SEAL, FOAM (4)
10	WCI 3051728
11	SUPPORT, GLASS
12	FASTNR-NYLN SPACR 3/32“ (5)
13	OVEN GLASS-REAR
14A	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
14	FASTNR-NYLON PUSH-IN SPACR (5)
15	INSUL. OVEN DR
15A	5303300265 Frigidaire Oven Screw
16	SCREW-HANDLE
