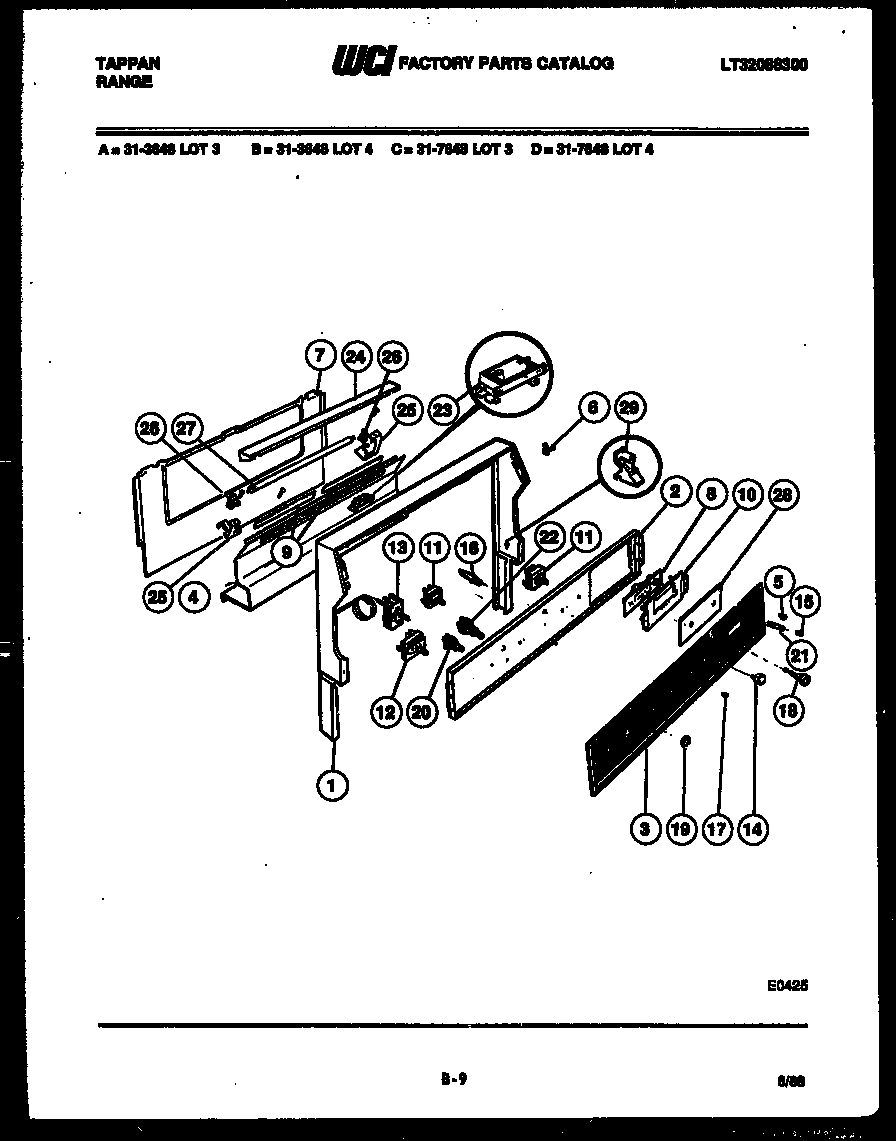

31-3648-66-03 02 – BACKGUARD

31-3648-66-03 02 – BACKGUARD

Written by

in

31-3648-66-03 02 – BACKGUARD

Products

PositionProduct
1WCI 3131436
2PLATE-INSTR MTG
3WCI 3051863
4TRIM-LOW SPLASHR
5NUT – DECOR (2)
6FSTNR-GLASS(2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3131488
9GLASS-WORK LITE (2)
10WCI 3131507
11SWITCH S/U (4)
12WCI 3016812
12WCI 3051317
13WCI 3051323
14KNOB-TOP ELM (4)
14BKNOB-THERMO.
14AWCI 3051488
15WCI 358T206P01
16AINDICATOR LIGHT (4)
16INDICATOR-LITE OVN
17ARETAINER-LENS
17LENS-IND LIGHT (2)
18BUTTON-ELECT CLOCK (4)
19WCI 045T071P01
20SWITCH-OV LT
21WCI 3131508
22SW.-FLUOR. LT.
23WCI 3051115
24SHIELD-FLUOR LT.
25BRKT-FLUOR LT MTG LH
25AWCI 3051577
26ARECEPTACLE-FLU LT RH
26RECEPTACLE-FLU LT LH
27BULB-FLUOR
28WCI 3051160
29SUPPORT-BACKGUARD (2)
