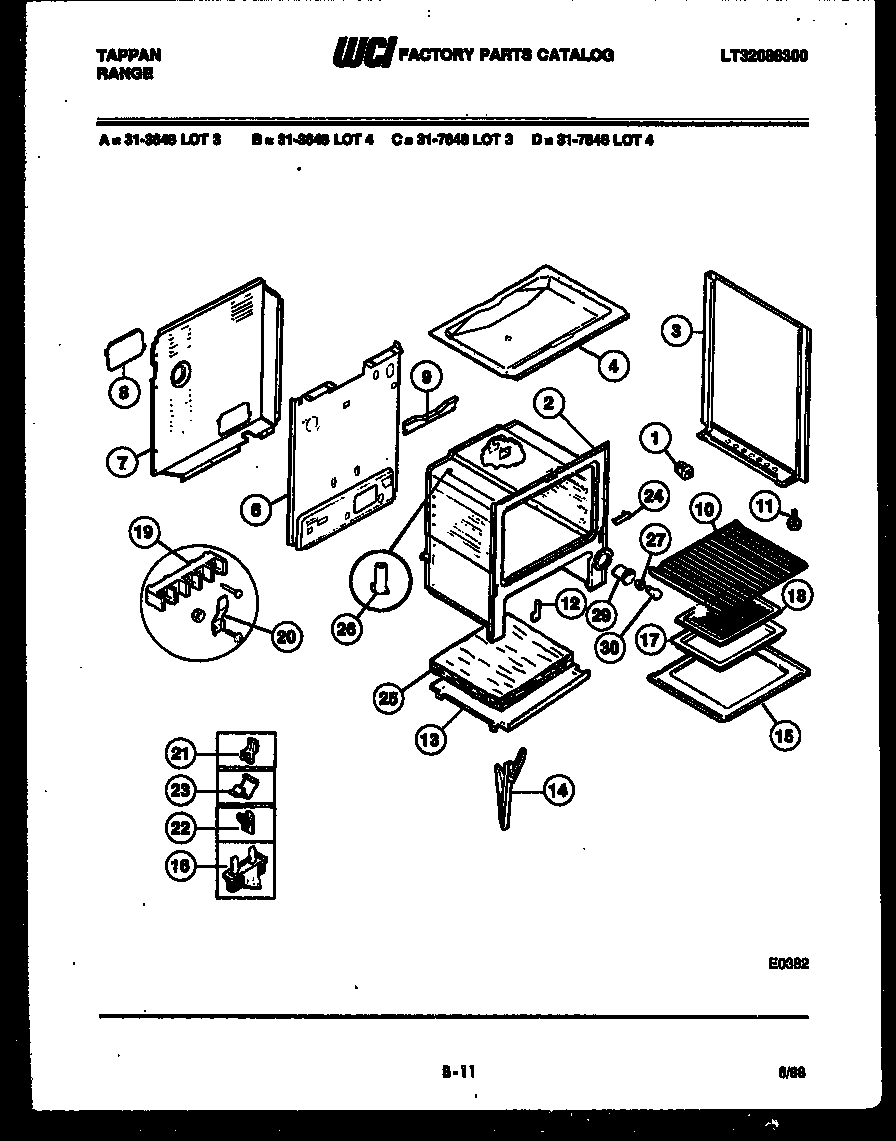

31-3648-66-03 03 – BODY PARTS

31-3648-66-03 03 – BODY PARTS

Written by

in

31-3648-66-03 03 – BODY PARTS

Products

PositionProduct
1WCI 665T188P02
3APNL. B/S (RH WHITE)
3PNL. B/S (LH ALMOND)
3APNL. B/S (RH ALMOND)
3PNL. B/S (LH WEAT)
3APNL. B/S (RH WEAT)
3PNL. B/S (LH WHITE)
4WCI 3017926
6WCI 3131567
7WCI 3051400
8COVER, LOWER ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11WCI 636M004P01
12WCI 3131570
13WCI 3051398
14CHANL-DR HNG (2)
15WCI 3051104
16FUSE-THERMO CUTOUT
17PAN, BROILER
18WCI 3131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 711T048P01
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER FRNT MAIN (NON-ILLUSTRATED)
25316403803 Frigidaire Insulation
26WCI 3051344
27BINSULATION-BACK (NON-ILLUSTRATED)
27AWCI 3131201
27WCI 622T042P01
27ENUT-HEX BRASS (6) (NON-ILLUSTRATED)
27DSCREW-HNG MTG (6) (NON-ILLUSTRATED)
27C3131903 Frigidaire Door/Drawer Bumper
29TUBE-OVEN LIGHT
30316538904 Frigidaire Oven Lamp Light
