31-3858-23-02 06 – BACKGUARD – Aparts

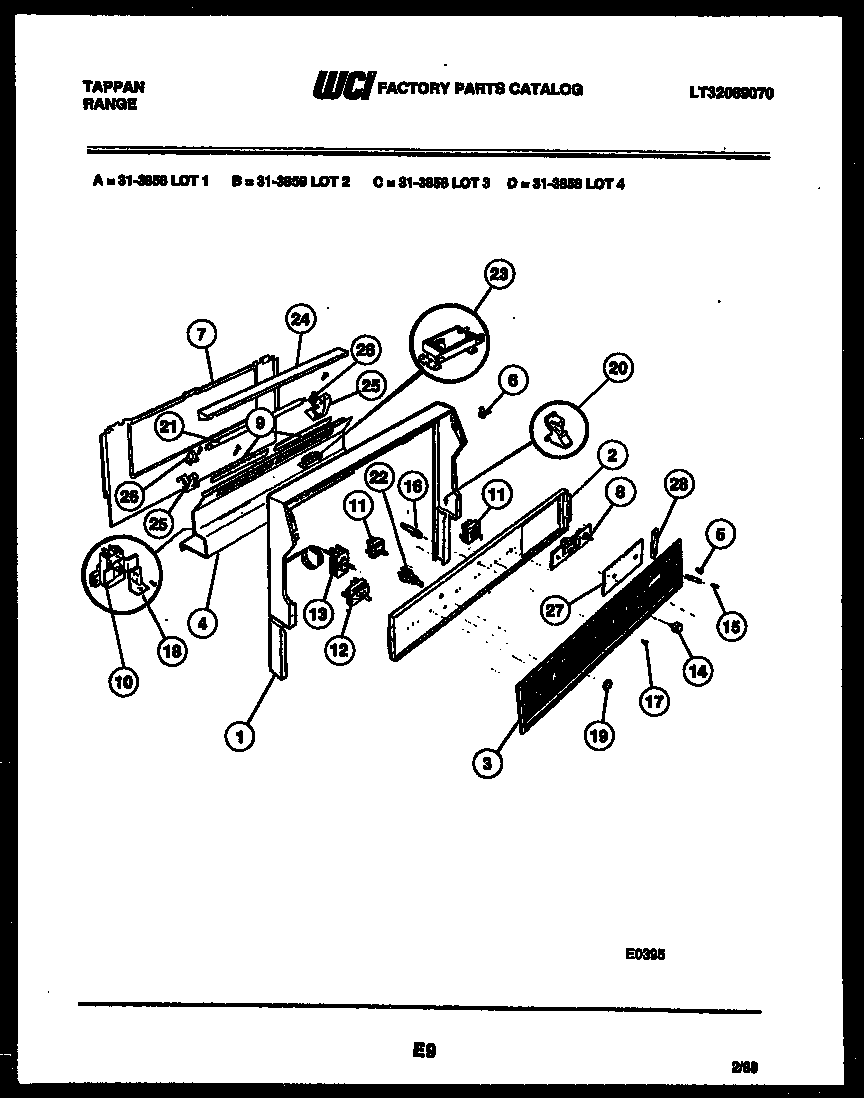

31-3858-23-02 06 – BACKGUARD

Products

Position	Product
1	WCI 3131436
2	PLATE-INSTR MTG
3	WCI 3051869
4	TRIM-LOW SPLASHR
5	NUT - DECOR (2)
6	FSTNR-GLASS(2)
7	SHIELD-BACKGUARD,REAR WALL
8	CLOCK
9	GLASS-WORK LITE (2)
10	THERMOSTAT-S/C
11	SWITCH S/U (4)
12	WCI 3051315
13	THERMO-OVEN
14	KNOB-TOP ELM (4)
14	KNOB-THERMO.
14	WCI 3051490
15	WCI 358T201P01
16	INDICATOR LIGHT (4)
16	INDICATOR-LITE OVN
17	LENS-IND LIGHT (2)
17A	RETAINER-LENS
18	ANGLE-S/C THERM. MTG
19	WCI 045T071P01
20	SUPPORT-BACKGUARD (2)
21	BULB-FLUOR
22	SW.-FLUOR. LT.
23	WCI 3051115
24	SHIELD-FLUOR LT.
25	BRKT-FLUOR LT MTG RH
25	BRKT-FLUOR LT MTG LH
26	RECEPTACLE-FLU LT RH
26	RECEPTACLE-FLU LT LH
27	WCI 3051159
28	RETAINR-CLOCK LENS (2)
