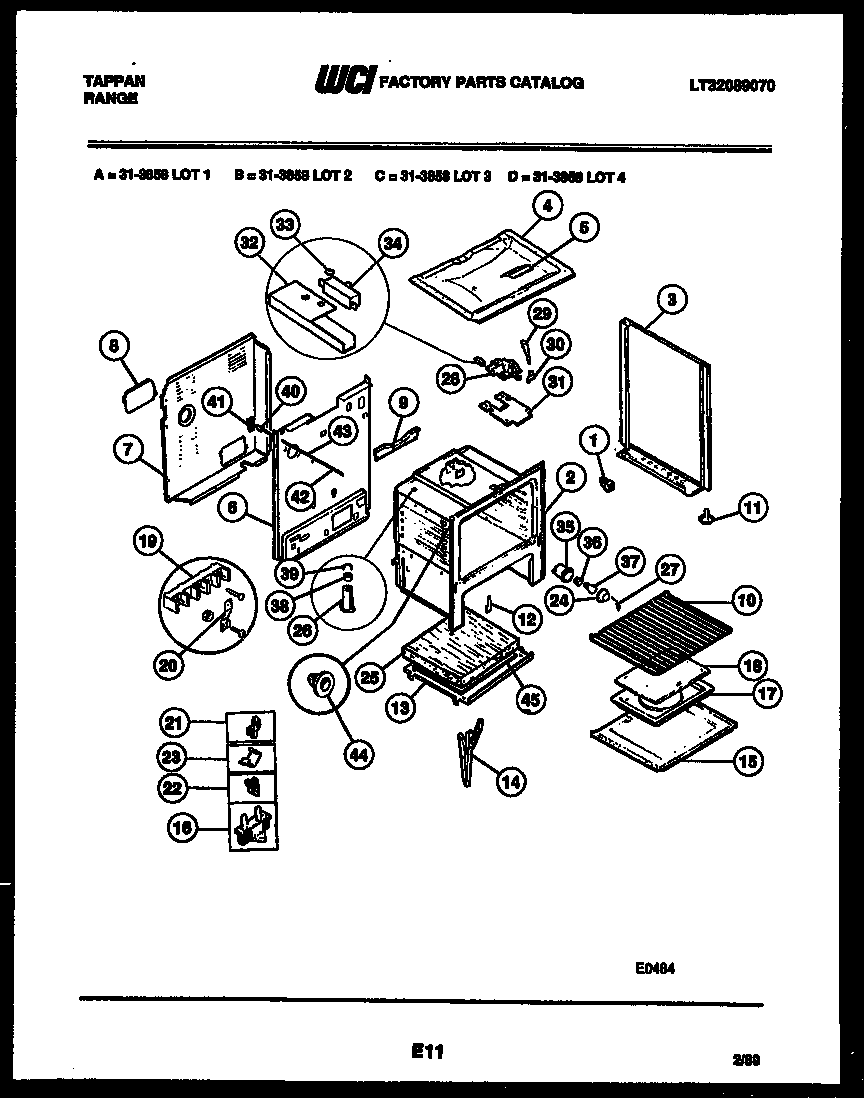

31-3858-66-02 07 – BODY PARTS

Products

Position	Product
*16680	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*16679	WCI 3131305
*16679	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*16680	316403803 Frigidaire Insulation
1	WCI 665T188P02
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	COVER, LOWER ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHANL-DR HNG (2)
15	WCI 3051104
16	FUSE-THERMAL CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
25	INSULATION, BOTTOM
26	WCI 3051344
27F	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27E	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
27	WCI 3131104
27D	INSULATION, OVEN WRAPPER
27C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 3051258
29	WCI 3051473
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
30	KNOB, LATCH
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	WCI 241T001P01
34	WCI 695T226P01
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 174T329P01
44	BUTTON-REMOTE SW
45	WCI 3200848
