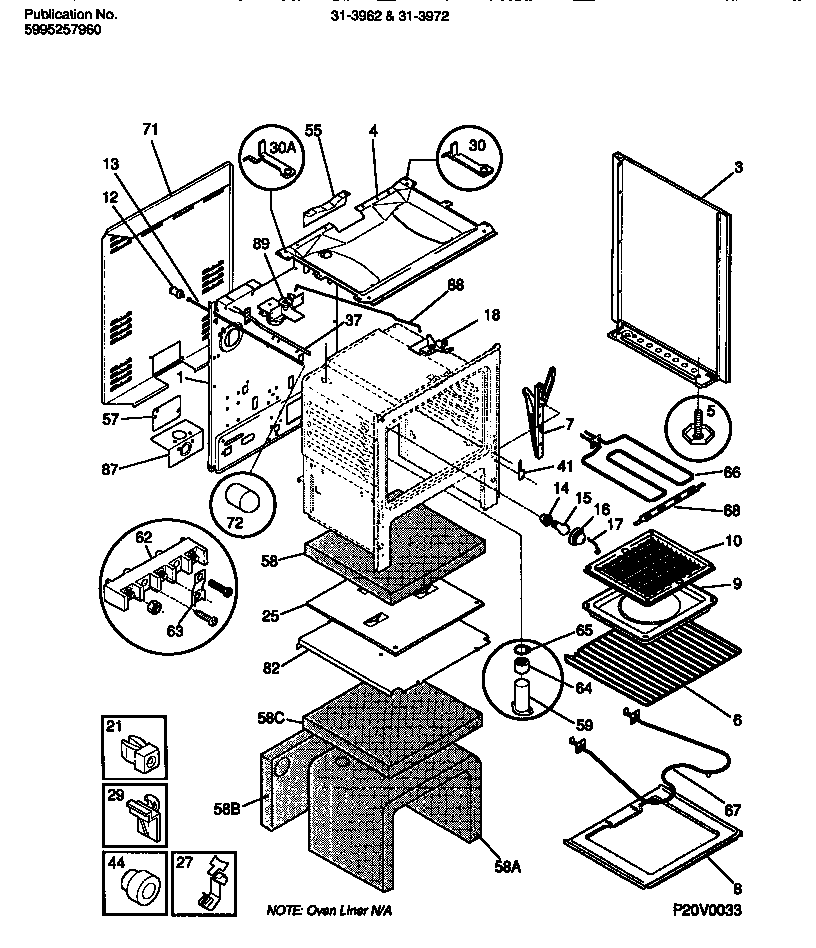

31-3962-00-02 03 – BODY

Products

PositionProduct
*26041FASTENER-EDGE MTG (NOT ILLUSTRATED)
*260423203550 Frigidaire Oven Plug
*260435303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 316029405
3PNL-B/S-RH-WHITE
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BPNL-B/S-LH-WHITE
4WCI 5303271756
5SCREW-LEVELING
5AWCI 3934058
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58AINSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
58CINSULATION, OVEN TOP
58BWCI 316054200
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
62A316205500 Frigidaire Oven Nut
63AWCI 316001161
63PLATE-GROUND STRAP
64WCI 08067810
65WCI 08010606
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028101
