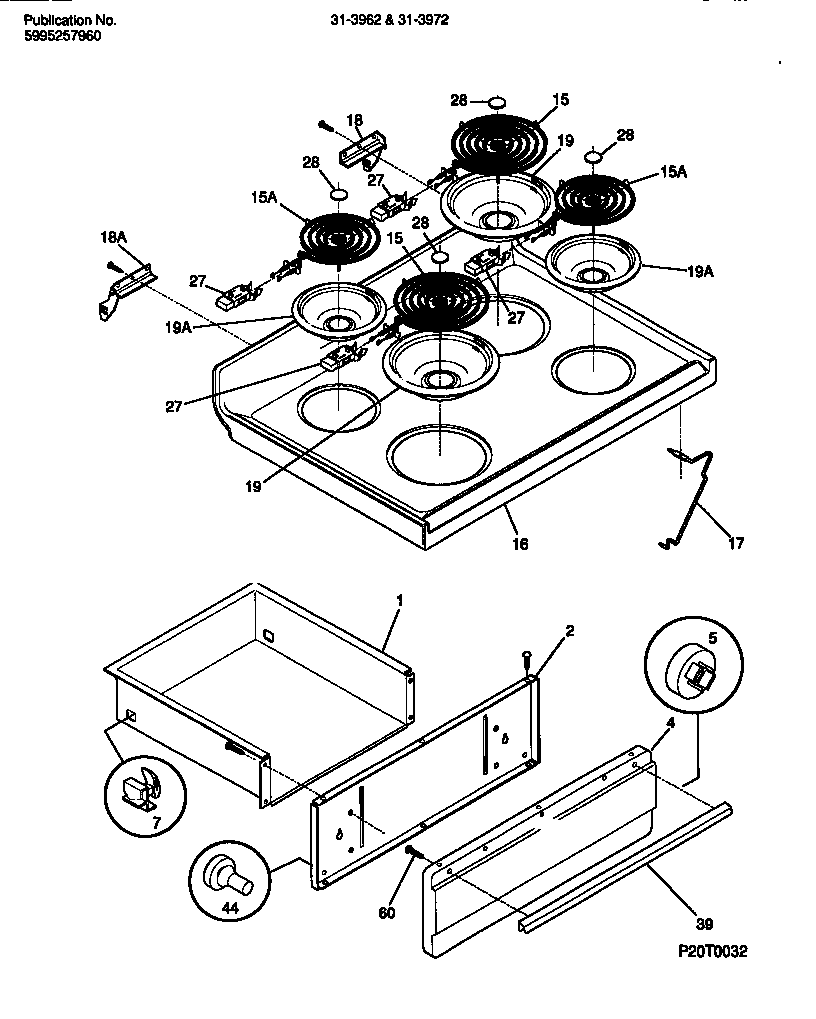

31-3962-23-02 04 – TOP/DRAWER

31-3962-23-02 04 – TOP/DRAWER

Written by

in

31-3962-23-02 04 – TOP/DRAWER

Products

PositionProduct
*26049WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 316020908
17316057601 Frigidaire Oven Rod
18B131243700 Frigidaire Screw
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
39HANDLE-DRAWER, ALMOND
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
