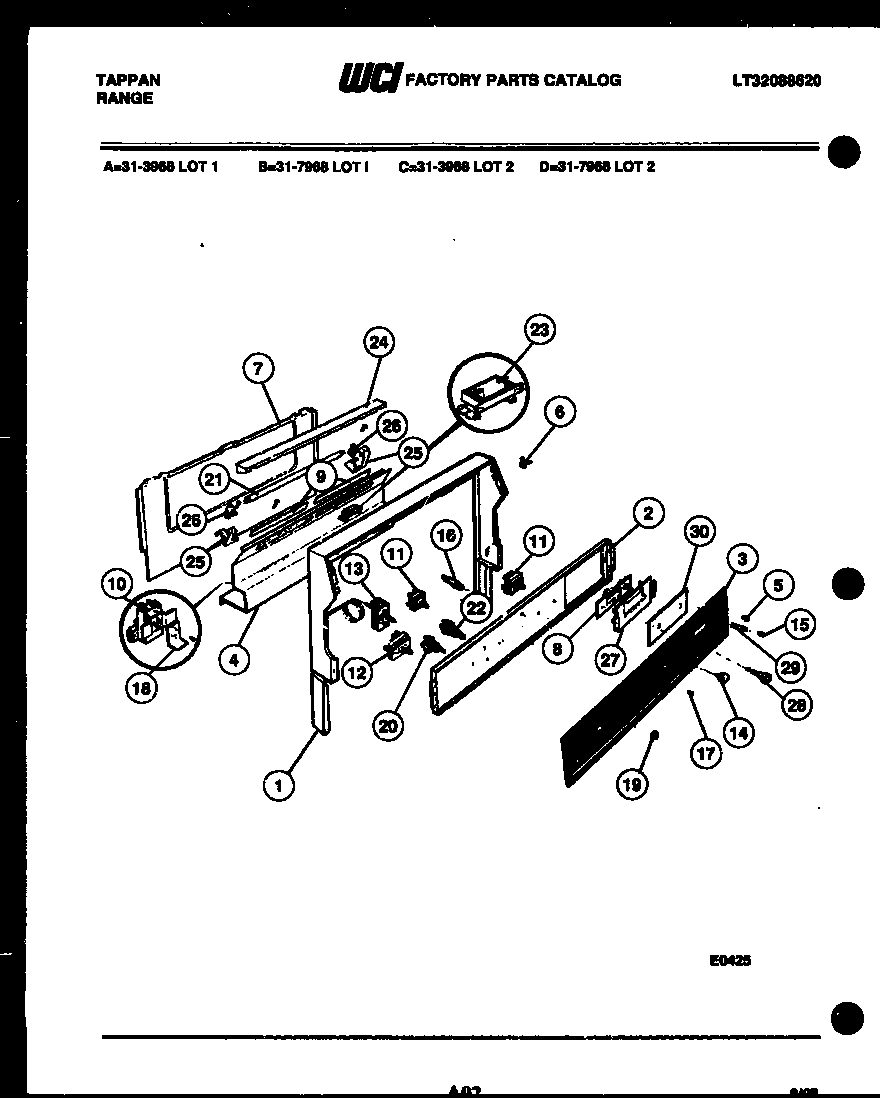

31-3968-23-01 02 – BACKGUARD AND CONTROL PARTS

31-3968-23-01 02 – BACKGUARD AND CONTROL PARTS

Written by

in

31-3968-23-01 02 – BACKGUARD AND CONTROL PARTS

Products

PositionProduct
1WCI 3131436
2PLATE-INSTR MTG
3WCI 3051871
4TRIM-LOW SPLASHR
5NUT – DECOR (2)
6FSTNR-GLASS(2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3051119
9GLASS-WORK LITE (2)
10THERMOSTAT-S/C
11SWITCH S/U (4)
12WCI 3051315
13THERMO-OVEN
14BKNOB-THERMO.
14AWCI 3051490
14KNOB-TOP ELM (4)
15WCI 358T206P01
16INDICATOR-LITE OVN
16INDICATOR LIGHT (4)
17LENS-IND LIGHT (2)
17ARETAINER-LENS
18ANGLE-S/C THERM. MTG
19WCI 045T071P01
20SWITCH-OV LT
21BULB-FLUOR
22SW.-FLUOR. LT.
23WCI 3051115
24SHIELD-FLUOR LT.
25ABRKT-FLUOR LT MTG RH
25BRKT-FLUOR LT MTG LH
26RECEPTACLE-FLU LT LH
26ARECEPTACLE-FLU LT RH
27WCI 3131556
28BTN.-ELEC. CLK. (4)
29SHAFT-ELEC. CLK.
30WCI 3051161
