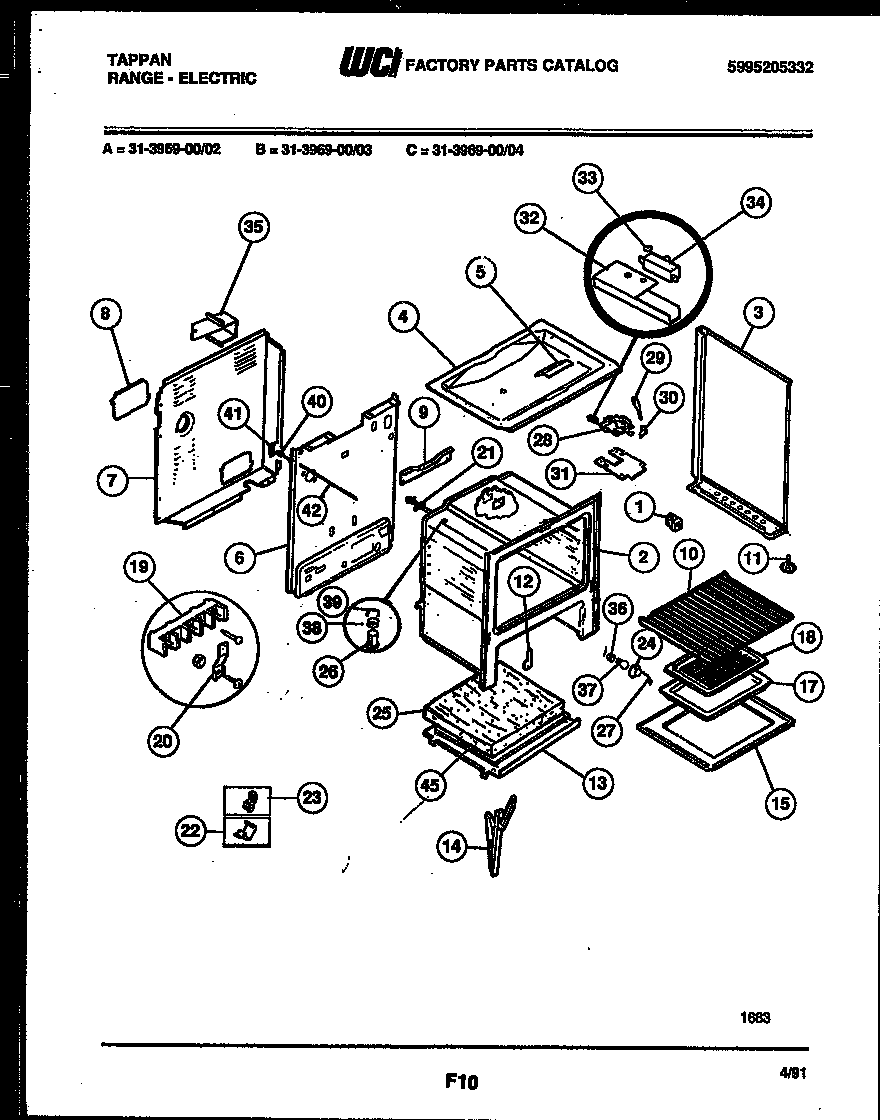

31-3969-00-04 05 – BODY PARTS

31-3969-00-04 05 – BODY PARTS

Written by

in

31-3969-00-04 05 – BODY PARTS

Products

PositionProduct
*46658SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*46658ANTI-TIP KIT (NOT ILLUSTRATED)
*46658WCI 5303206618
*46658WCI 19100210076
*46658FASTENER-EDGE MTG (NOT ILLUSTRATED)
*46658INSULATION, OVEN TOP
*466583203550 Frigidaire Oven Plug
1SPACER-BODYSIDE, (8)
3AWCI 5303269543
3WCI 5303269545
3APNL-B/S-RH-WHITE
3PNL-B/S-LH-WHITE
4WCI 5303271658
5WCI 3131101
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215304497424 Frigidaire Oven Temperature Sensor Probe Kit
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26WCI 3051344
27CINSULATION, OVEN WRAPPER
27E316205500 Frigidaire Oven Nut
27DSCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
27AINSULATION OVEN BACK (NON-ILLUSTRATED)
27B3131903 Frigidaire Door/Drawer Bumper
27RETAINER-GLASS
28WCI 5303015361
29WCI 5303131357
30WCI 3203218
30AWCI 08013188
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FSTNR-PUSH ON
34SWITCH-LATCH
35WCI 3203582
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39WCI 08010606
40SWITCH-OVEN LITE DOOR
41WCI 5303131289
42WCI 5303209316
45WCI 3200848
