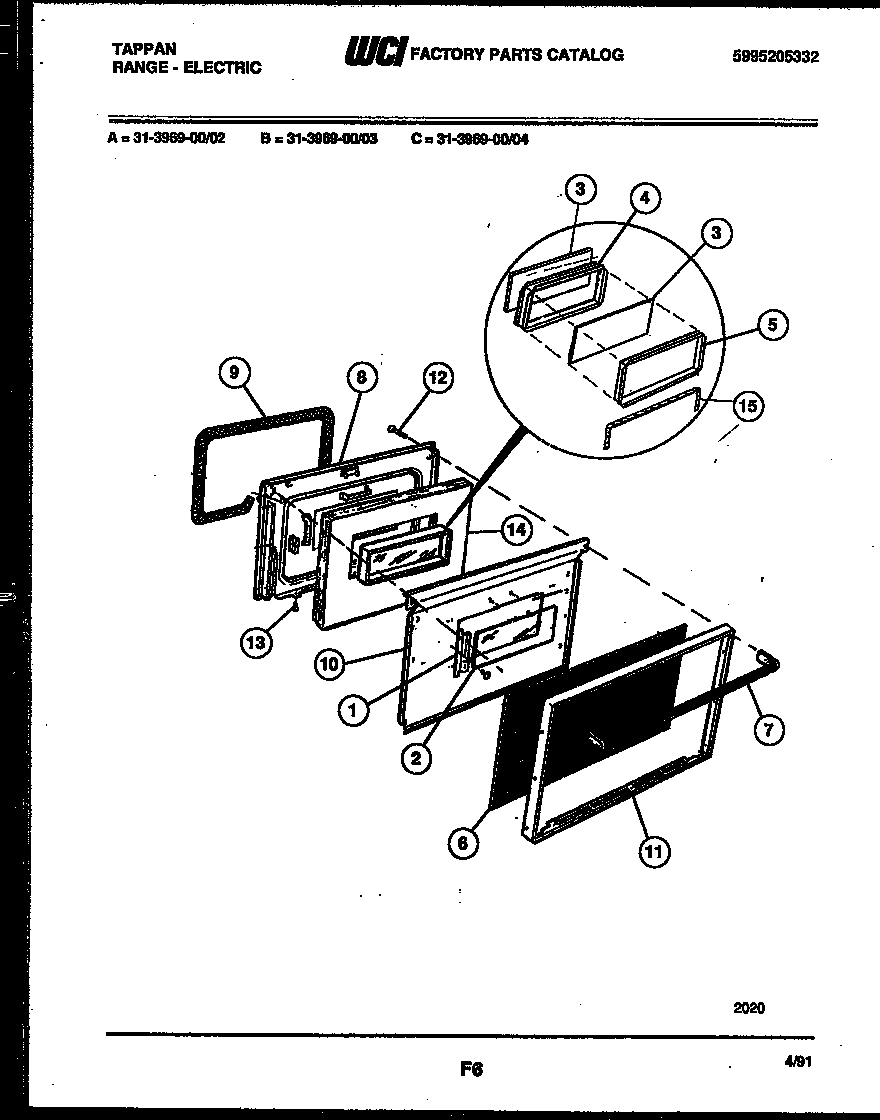

31-3969-23-02 02 – DOOR PARTS

31-3969-23-02 02 – DOOR PARTS

Written by

in

31-3969-23-02 02 – DOOR PARTS

Products

PositionProduct
*46651SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*46651WCI 5303269859
*466515303300265 Frigidaire Oven Screw
*46651FSTNR-NYLON SPACER (NON-ILLUSTRATED)
*46651REFLECTOR, ALUMINUM FOIL
*466515303208655 Frigidaire Reflector Assembly
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4WCI 5303209517
5WCI 5303209511
6GLASS FRNT
7HANDLE
8WCI 5303209515
95303131601 Frigidaire Oven Seal
10SHIELD-INSULATION
11WCI 5303209518
12WCI 3016851
135303271648 Frigidaire Oven Screw
14INSULATION-OVEN DOOR
15SEAL-ROPE, 0.25 DIA
