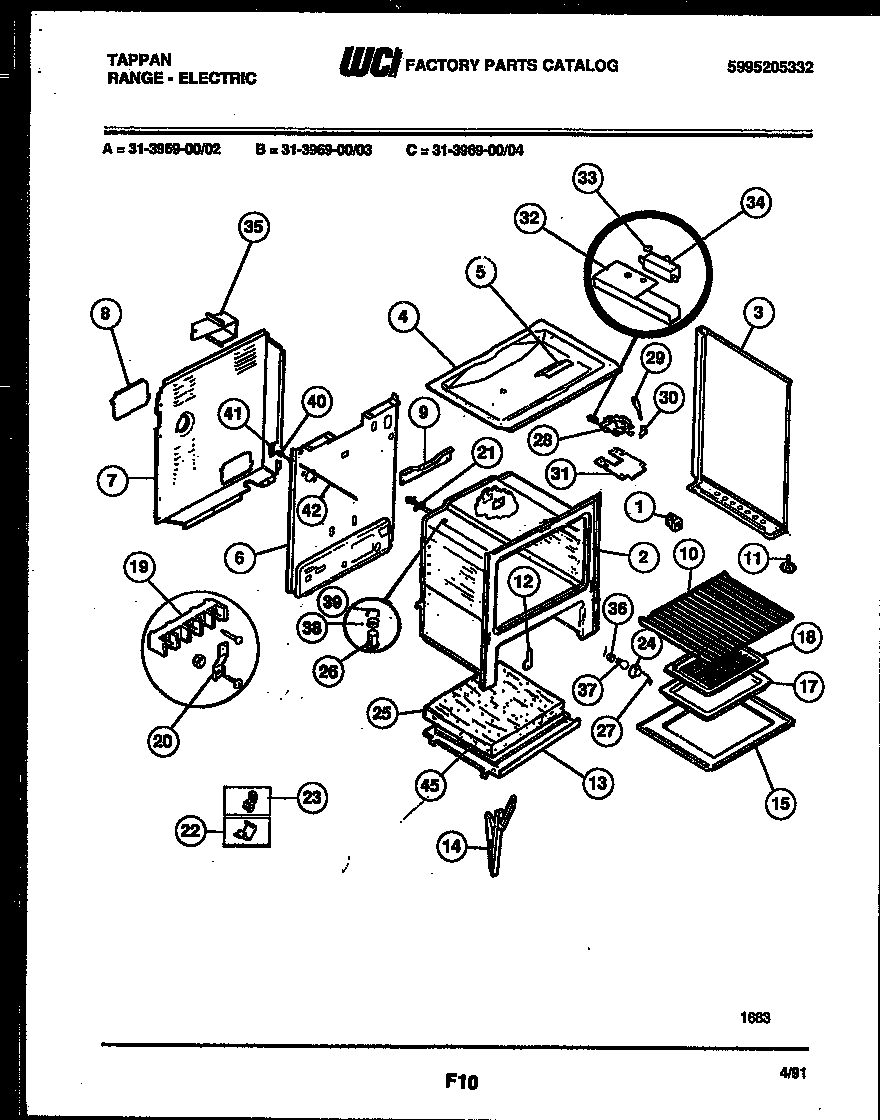

31-3969-23-03 05 – BODY PARTS

Products

Position	Product
*46658	3203550 Frigidaire Oven Plug
*46658	WCI 19100210005
*46658	ANTI-TIP KIT (NOT ILLUSTRATED)
*46658	INSULATION, OVEN TOP
*46658	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*46658	WCI 5303206618
*46658	FASTENER-EDGE MTG (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3A	WCI 5303269543
3	WCI 5303269545
4	WCI 5303271658
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27D	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
27	RETAINER-GLASS
27C	INSULATION, OVEN WRAPPER
27A	INSULATION OVEN BACK (NON-ILLUSTRATED)
27B	3131903 Frigidaire Door/Drawer Bumper
27E	316205500 Frigidaire Oven Nut
28	WCI 5303015361
29	WCI 5303131357
30	WCI 3203218
30A	WCI 08013188
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	SWITCH-LATCHING
35	WCI 3203582
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	WCI 5303209316
45	WCI 3200848
