31-3972-00-02 05 – DOOR

31-3972-00-02 05 – DOOR

Written by

in

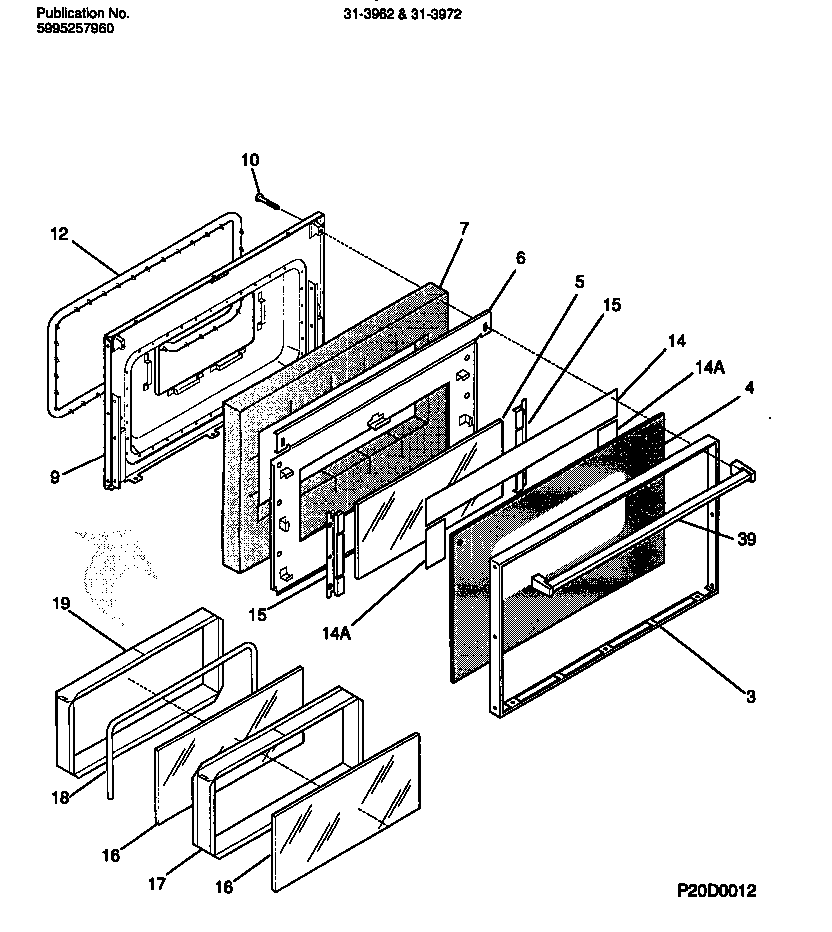

31-3972-00-02 05 – DOOR

Products

PositionProduct
*26050RIVET-POP, WARING-PLATE
*26047WCI 316065300
*26048SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*260455303300265 Frigidaire Oven Screw
3WCI 316067804
4WCI 316019718
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION, WHITE
7INSULATION-OVEN DOOR
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14ALUM FOIL-B/G GLASS
14A5303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39WCI 316008301
