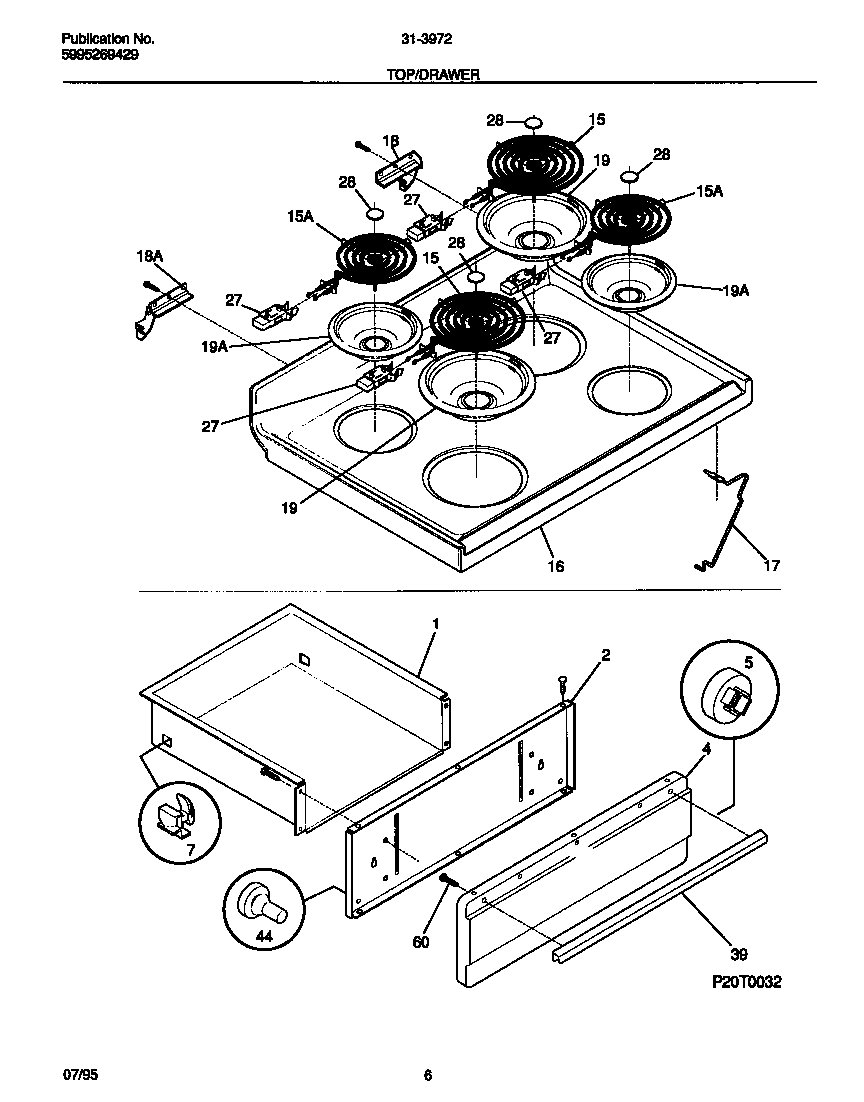

31-3972-00-03 04 – TOP/DRAWERadmin2025-04-26T08:52:58+00:0031-3972-00-03 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| *82010 | 131243700 Frigidaire Screw |
| *82008 | RIVET-POP, WARING-PLATE |
| *82009 | WCI 5303281584 |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 4 | PANEL-BROILER, WHITE |
| 4 | PNL-DRAWER (WHTE) |
| 5 | FSTNR, SPACER (2) |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 15 | 318372211 Frigidaire Oven 6" Electric Range Burner Kit |
| 15 | 316442301 Frigidaire Oven 8 Coil Element 2600W |
| 16 | 316202388 Frigidaire Oven Maintop |
| 17 | 316057601 Frigidaire Oven Rod |
| 18 | HINGE-MAIN TOP (RH) |
| 18 | HINGE-MAIN TOP (LH) |
| 19 | 316048413 Frigidaire Oven Range Chrome 8" Drip Bow |
| 19 | L304430992 Frigidaire 6" Drip Bowl Chrome FM |
| 27 | 5303935058 Frigidaire Oven Burner Receptacle Kit |
| 28 | MEDALLION, STAINLESS STEEL, SURF ELEM |
| 28 | 5303017715 Frigidaire Medallion |
| 39 | HANDLE-DRAWER, WHITE |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 60 | SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2 |
