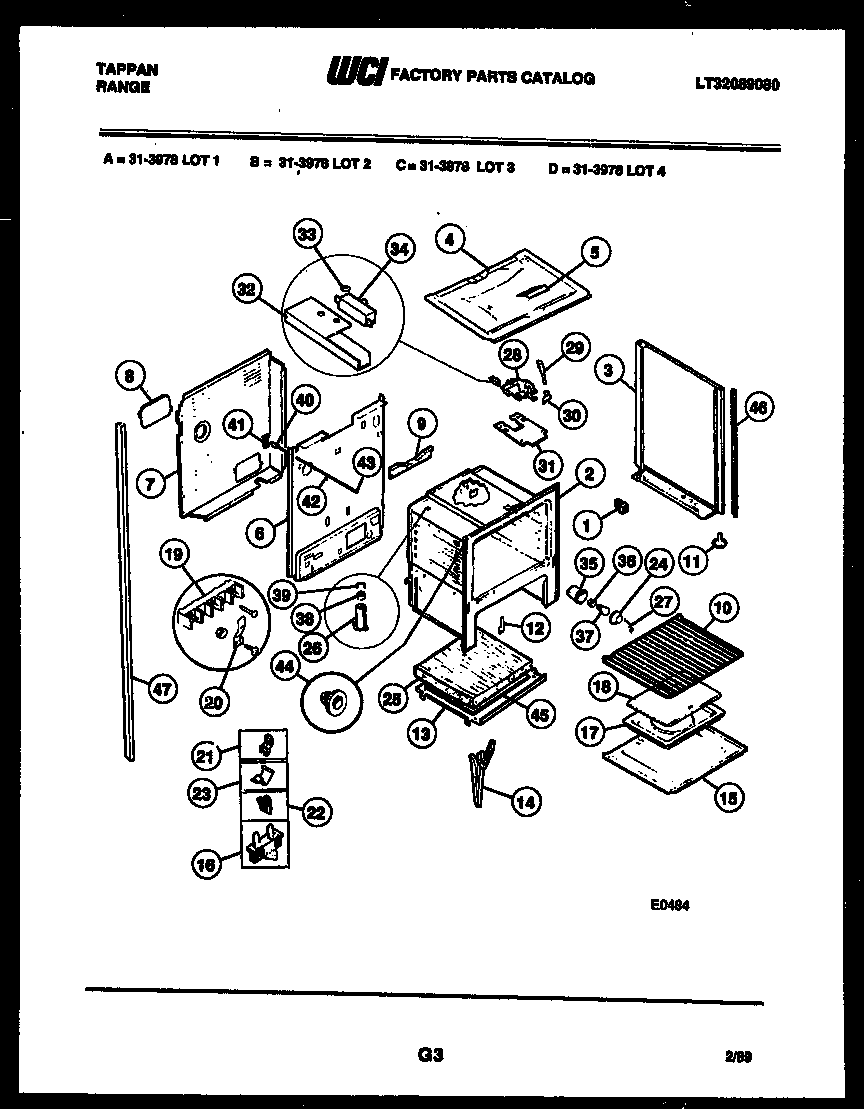

31-3978-00-02 07 – BODY PARTS

Products

Position	Product
*16850	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*16850	INSULATION, OVEN WRAPPER
*16850	316403803 Frigidaire Insulation
*16850	INSULATION, OVEN TOP
*16850	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
1	SPACER, BODYSIDE (8)
3	PNL B/S-LH (WHEAT)
3	PNL. B/S (RH ALMOND)
3	PNL. B/S (RH WHITE)
3	PNL. B/S (LH ALMOND)
3	PNL. B/S (LH WHITE)
3	PNL B/S-RH (WHEAT)
3	B/S-LH-(WHITE)
3	B/S-RH-(WHITE)
3	PNL. B/S (LH WEAT)
3	PNL. B/S (RH WEAT)
3	PNL B/S-LH (ALMOND)
3	PNL B/S-RH (ALMOND)
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	COVER, LOWER ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	WCI 3051398
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	WCI 3051104
16	FUSE-THERMAL CUTOUT
17	WCI 3013568
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
25	INSULATION, BOTTOM
26	WCI 3051344
27	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27	3131903 Frigidaire Door/Drawer Bumper
27	WCI 3131104
27	WCI 3131305
27	INSUL OVEN BACK (NON-ILLUSTRATED)
28	WCI 3015361
29	WCI 3051473
30	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
30	KNOB, LATCH
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	WCI 3131672
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
44	BUTTON-REMOVE LIGHT SWITCH
45	SHIELD, HEAT LOWER
45	WCI 3200848
