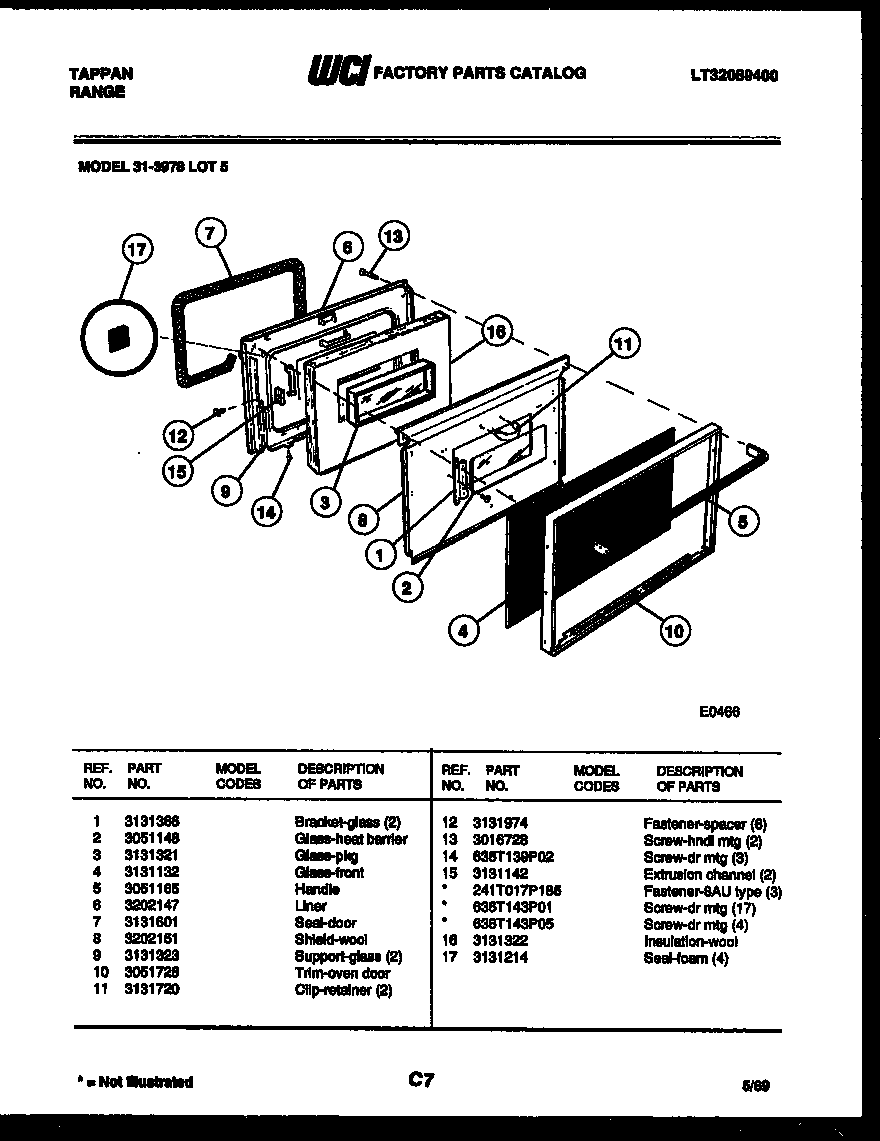

31-3978-00-05 02 – DOOR PARTS

Products

Position	Product
1	BRKT GLASS (2)
2	WCI 3051148
3	WCI 3131321
4	GLASS FRNT
5	WCI 3051165
6	LINER
7	5303131601 Frigidaire Oven Seal
8	WCI 3202151
9	SUPPORT, GLASS
10	WCI 3051728
11	CLIP-RETAINING
12	FSTNR. SPACER (6)
13	SCREW, HANDLE MOUNTING (2)
14	SCREW-DOOR MTG (3)
15B	SCREW-DOOR MTG (4) (NON-ILLUSTRATED)
15B	5303300265 Frigidaire Oven Screw
15A	FSTNR 8AU TYPE (3)
15	EXTRUSION-CHANNL
16	WCI 3131322
17	SEAL, FOAM (4)
