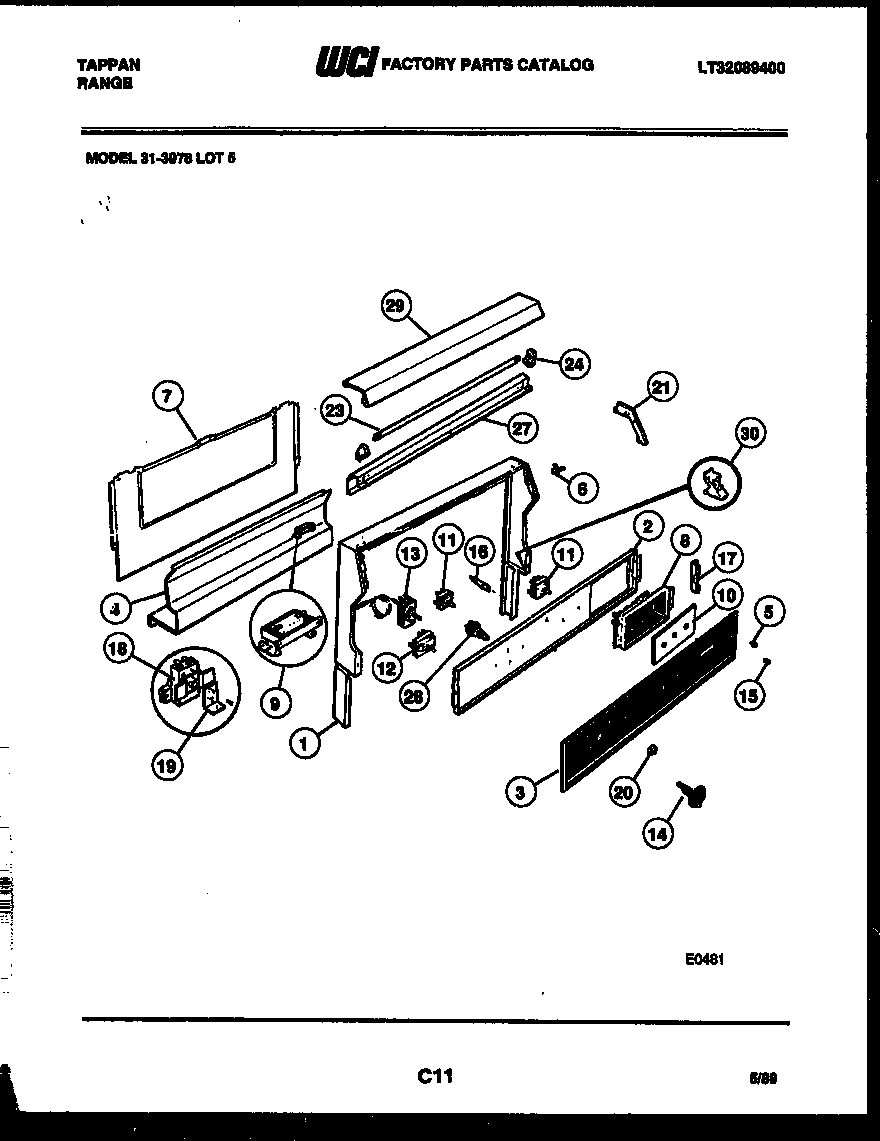

31-3978-00-05 06 – BACKGUARD

Products

PositionProduct
1WCI 3016779
2PLATE-INSTR MTG
3WCI 3201837
4TRIM, LOWER SPLASHER
5NUT – DECOR (2)
6FASTENER, GLASS (2)
7SHIELD-BACKGUARD,REAR WALL
8ELECTRICAL CLOCK
9WCI 3051115
10WCI 277T219P02
11SWITCH S/U (4)
12WCI 3201732
13THERMOSTAT, OVEN
14KNOB-TOP ELM (4)
14AWCI 3201798
14BWCI 3201797
15WCI 358T201P01
16CINDICATOR LIGHT-LOCK (1)
16BLIGHT/LAMP, INDICATOR, BLUE, 250 V
16AINDICATOR LITE, OVEN (BLACK)
16INDICATOR LIGHT-125V (3)
17WCI 612T123P01
18THERMOSTAT-S/C
19ANGLE-S/C THERM. MTG
20WCI 3051727
21ACAP, END RH
21CAP, END LH
23BULB-FLUOR
24ARECEPTACLE-FLU LT RH
24RECEPTACLE-FLU LT LH
27WCI 3131277
28ASW.-FLUOR. LT.
28SWITCH-OV LT
29WCI 3131466
30SUPPORT-BACKGUARD (2)
