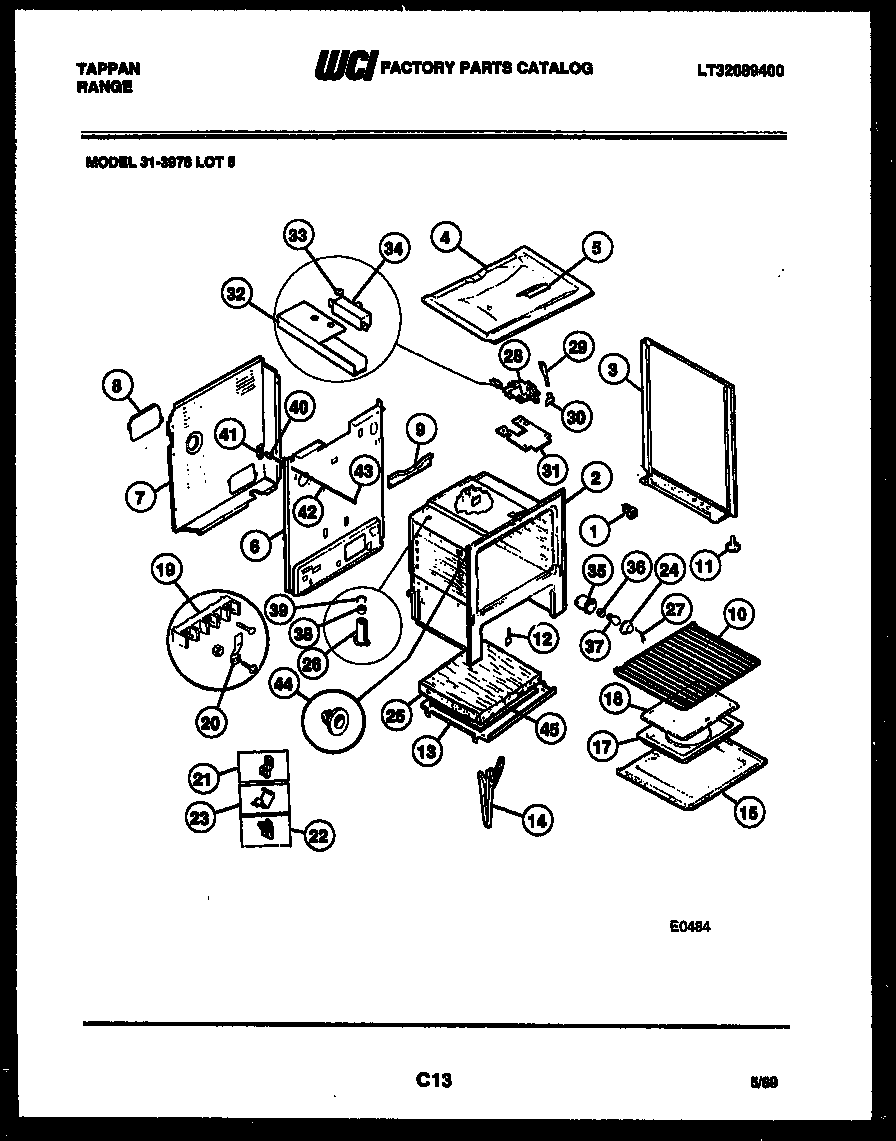

31-3978-00-05 07 – BODY PARTS

Products

Position	Product
*23172	INSULATION, OVEN WRAPPER
*23172	ANTI-TIP KIT (NOT ILLUSTRATED)
*23172	316403803 Frigidaire Insulation
*23172	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*23172	INSULATION, OVEN TOP
*23172	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
1	SPACER, BODYSIDE (8)
3	B/S-LH-(WHITE)
3A	B/S-RH-(WHITE)
4	WCI 3051109
5	WCI 3131101
6	WCI 3203404
7	SHIELD, LOWER WALL
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	WCI 3051104
17	WCI 3013568
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
25	INSULATION, BOTTOM
26	WCI 3051344
27E	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27	WCI 3131104
27C	3131903 Frigidaire Door/Drawer Bumper
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
27A	WCI 3131305
28	WCI 3015361
29	WCI 3051473
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
30	KNOB, LATCH
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	WCI 3131672
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
44	BUTTON-REMOVE LIGHT SWITCH
45	WCI 3200848
