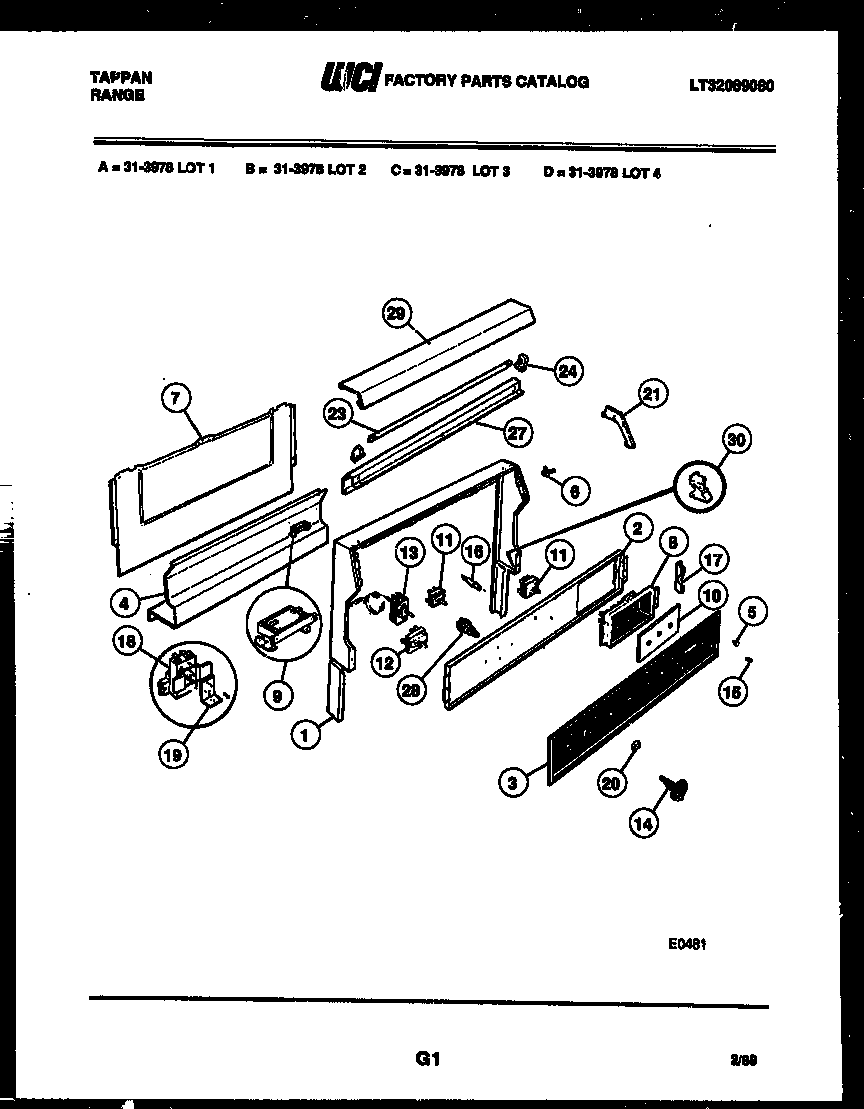

31-3978-23-02 06 – BACKGUARDadmin2025-04-26T08:52:58+00:0031-3978-23-02 06 – BACKGUARD
Products
| Position | Product |
|---|
| 1 | WCI 3016779 |
| 2 | PLATE-INSTR MTG |
| 3 | WCI 3201837 |
| 3 | WCI 3051871 |
| 4 | TRIM, LOWER SPLASHER |
| 5 | NUT - DECOR (2) |
| 6 | FASTENER, GLASS (2) |
| 7 | SHIELD-BACKGUARD,REAR WALL |
| 8 | ELECTRICAL CLOCK |
| 9 | WCI 3051115 |
| 10 | WCI 277T219P02 |
| 11 | SWITCH S/U (4) |
| 12 | WCI 3051315 |
| 12 | WCI 3201732 |
| 13 | THERMOSTAT, OVEN |
| 13 | THERMO-OVEN |
| 14 | WCI 3201797 |
| 14 | WCI 3201798 |
| 14 | KNOB-THERMO. |
| 14 | WCI 3051490 |
| 14 | KNOB-TOP ELM (4) |
| 15 | WCI 358T201P01 |
| 16 | LIGHT/LAMP, INDICATOR, BLUE, 250 V |
| 16 | INDICATOR LITE, OVEN (BLACK) |
| 16 | INDICATOR LIGHT-250V (2) |
| 16 | INDICATOR LIGHT-LOCK (1) |
| 16 | INDICATOR LIGHT-125V (3) |
| 17 | WCI 612T123P01 |
| 18 | THERMOSTAT-S/C |
| 19 | ANGLE-S/C THERM. MTG |
| 20 | WCI 3051727 |
| 21 | CAP, END RH |
| 21 | CAP, END LH |
| 23 | BULB-FLUOR |
| 24 | RECEPTACLE-FLU LT RH |
| 24 | RECEPTACLE-FLU LT LH |
| 27 | WCI 3131277 |
| 28 | SWITCH-OV LT |
| 28 | SW.-FLUOR. LT. |
| 29 | WCI 3131466 |
| 30 | SUPPORT-BACKGUARD (2) |
