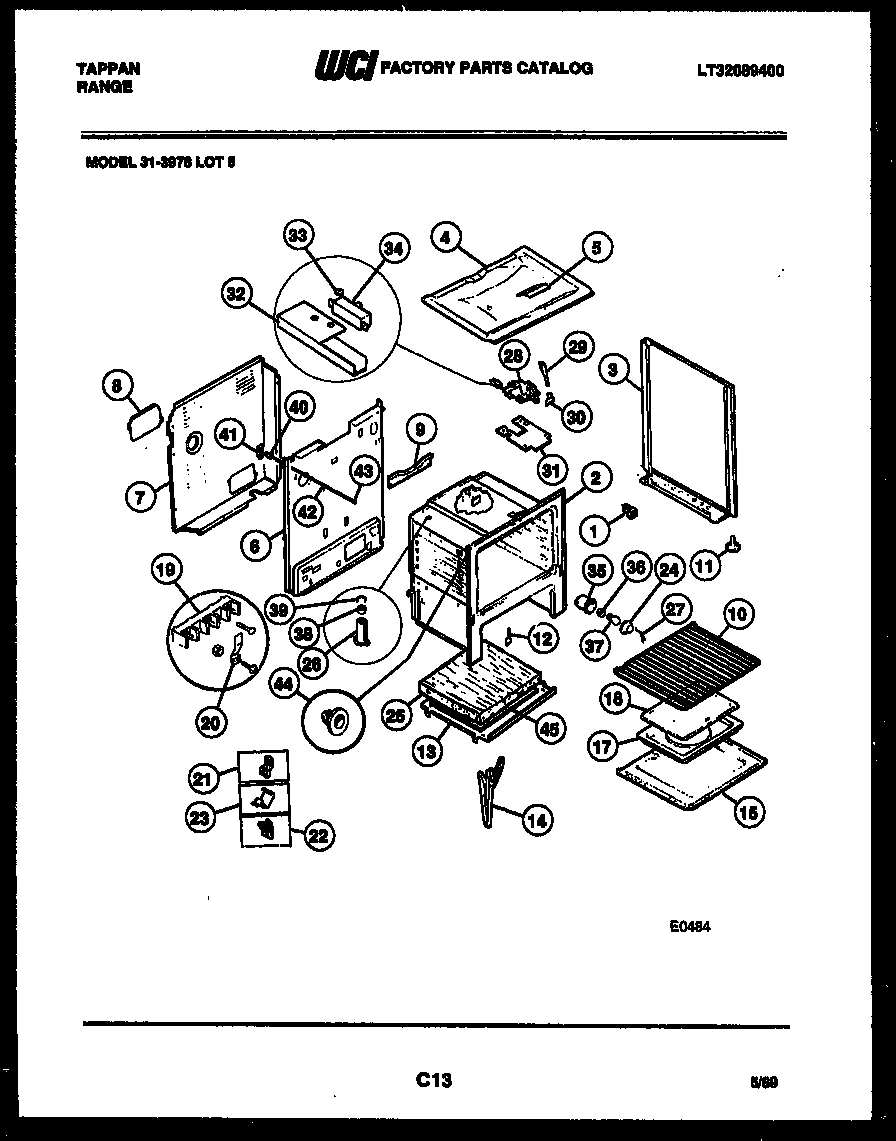

31-3978-23-05 07 – BODY PARTS

Products

PositionProduct
*23172FASTENER-EDGE MTG (NOT ILLUSTRATED)
*23172ANTI-TIP KIT (NOT ILLUSTRATED)
*23172INSULATION, OVEN WRAPPER
*23172SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*23172INSULATION, OVEN TOP
*23172316403803 Frigidaire Insulation
1SPACER, BODYSIDE (8)
3APNL B/S-LH (ALMOND)
3PNL B/S-RH (ALMOND)
4WCI 3051109
5WCI 3131101
6WCI 3203404
7SHIELD, LOWER WALL
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15WCI 3051104
17WCI 3013568
18WCI 3131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 711T048P01
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24WCI 3131298
25INSULATION, BOTTOM
26WCI 3051344
27DSCREW-HNG MTG (6) (NON-ILLUSTRATED)
27ENUT-HEX BRASS (6) (NON-ILLUSTRATED)
27BINSUL OVEN BACK (NON-ILLUSTRATED)
27C3131903 Frigidaire Door/Drawer Bumper
27AWCI 3131305
27WCI 3131104
28WCI 3015361
29WCI 3051473
30ASCREW-SET KNOB MTG (NON-ILLUSTRATED)
30KNOB, LATCH
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FASTENER, PUSH ON (3)
34WCI 3131672
35WCI 3131363
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 244T041P01
39RETAIN, CATALYST
40SWITCH-OVEN LITE DOOR
41BRKT LIGHT SWITCH
42ROD-LIGHT SWITCH
43WCI 3051251
44BUTTON-REMOVE LIGHT SWITCH
45WCI 3200848
