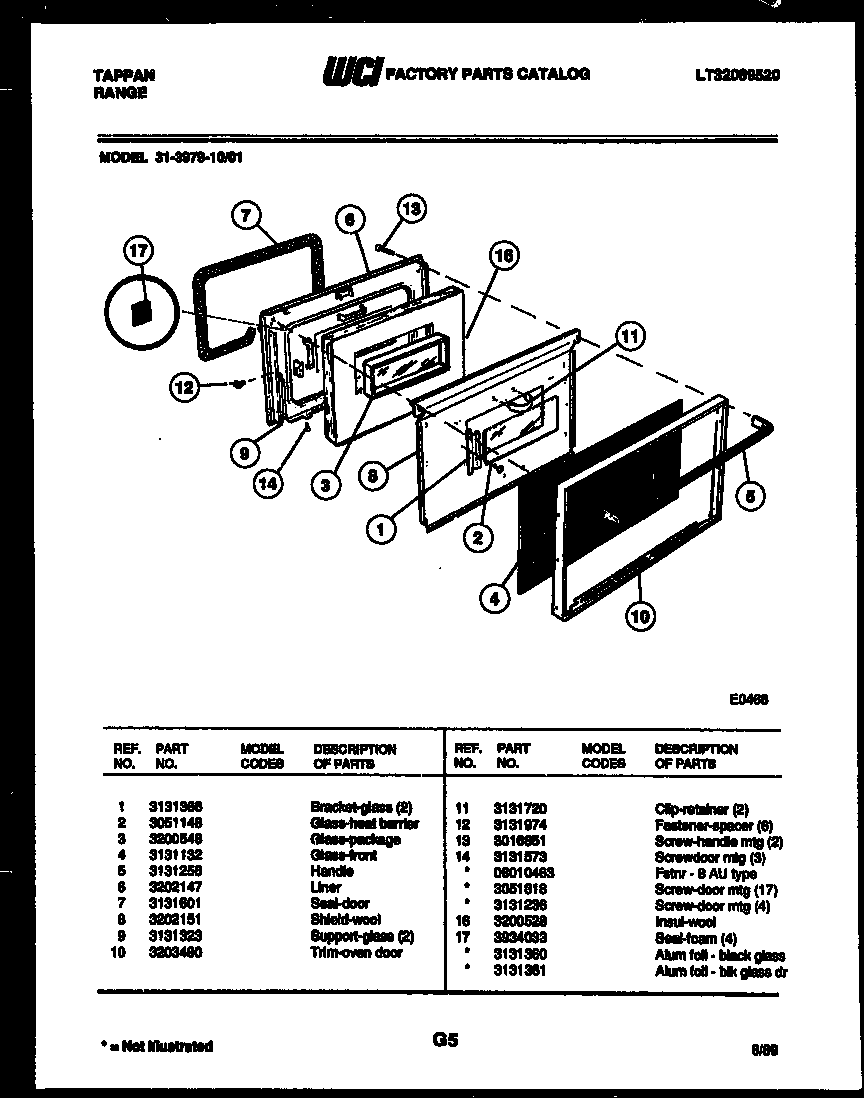

31-3979-00-01 02 – DOOR PARTS

31-3979-00-01 02 – DOOR PARTS

Written by

in

31-3979-00-01 02 – DOOR PARTS

Products

PositionProduct
*254075303208655 Frigidaire Reflector Assembly
*25407ALUM FOIL-B/G GLASS
1BRKT GLASS (2)
2WCI 3051148
3WCI 3200548
4GLASS FRNT
5WCI 3131256
6LINER
75303131601 Frigidaire Oven Seal
8WCI 3202151
9SUPPORT, GLASS
10WCI 3203480
11CLIP-RETAINING
12FSTNR. SPACER (6)
13WCI 3016851
14SCREW DOOR MTG
14BWCI 3131236
14AWCI 08010463
14B5303300265 Frigidaire Oven Screw
16INSUL OV DR W/ FOIL
17SEAL, FOAM (4)
