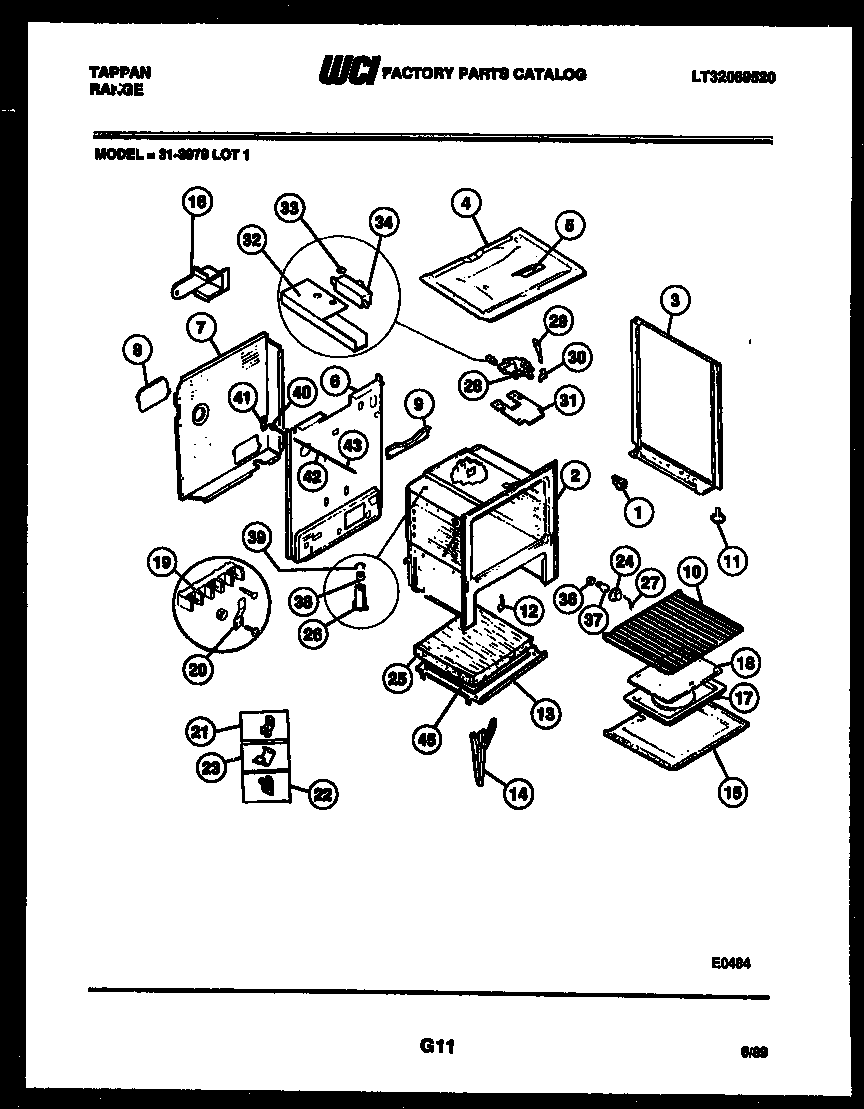

31-3979-00-01 07 – BODY PARTS

Products

PositionProduct
*25419SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*25419FASTENER-EDGE MTG (NOT ILLUSTRATED)
*25419ANTI-TIP KIT (NOT ILLUSTRATED)
*254193203550 Frigidaire Oven Plug
*25418INSULATION, OVEN TOP
*25419BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3AB/S-RH-(WHITE)
3B/S-LH-(WHITE)
4WCI 3051109
5WCI 3131101
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
16WCI 3203582
17WCI 3013568
18WCI 3131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 08011708
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26WCI 3051344
27DSCREW – CHANNEL MTG (NON-ILLUSTRATED)
27EWCI 08067783
27RETAINER-GLASS
27BINSULATION OVEN BACK (NON-ILLUSTRATED)
27C3131903 Frigidaire Door/Drawer Bumper
27AINSULATION, OVEN WRAPPER
28WCI 3015361
29WCI 3131357
30AWCI 08013188
30WCI 3203218
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FASTENER, PUSH ON (3)
34WCI 3131672
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39WCI 08010606
40WCI 3202622
41BRKT LIGHT SWITCH
42ROD-LIGHT SWITCH
43WCI 3051251
45WCI 3200848
