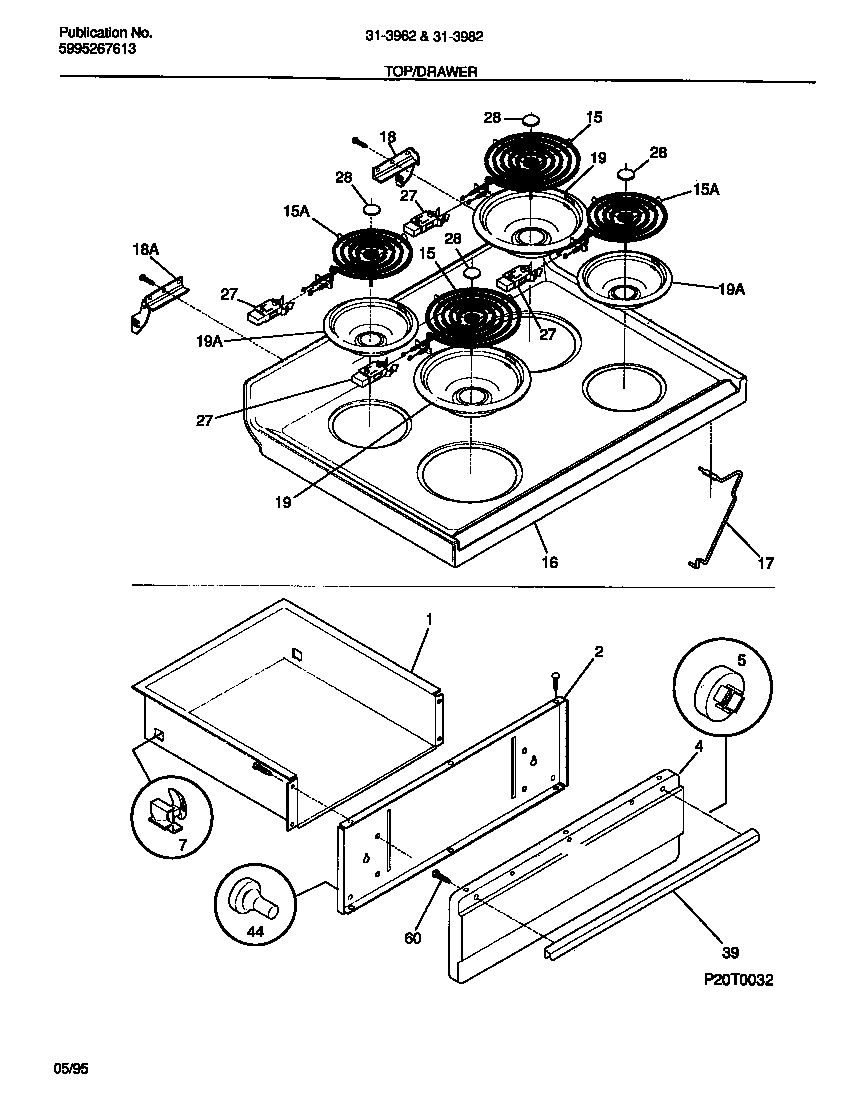

31-3982-00-03 04 – TOP/DRAWER

Products

Position	Product
*17772	316058601 Frigidaire Oven Clip
*17774	131243700 Frigidaire Screw
*17773	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	316202388 Frigidaire Oven Maintop
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A	L304430992 Frigidaire 6" Drip Bowl Chrome FM
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28B	5303017715 Frigidaire Medallion
28A	MEDALLION, STAINLESS STEEL, SURF ELEM
39	HANDLE-DRAWER, WHITE
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
