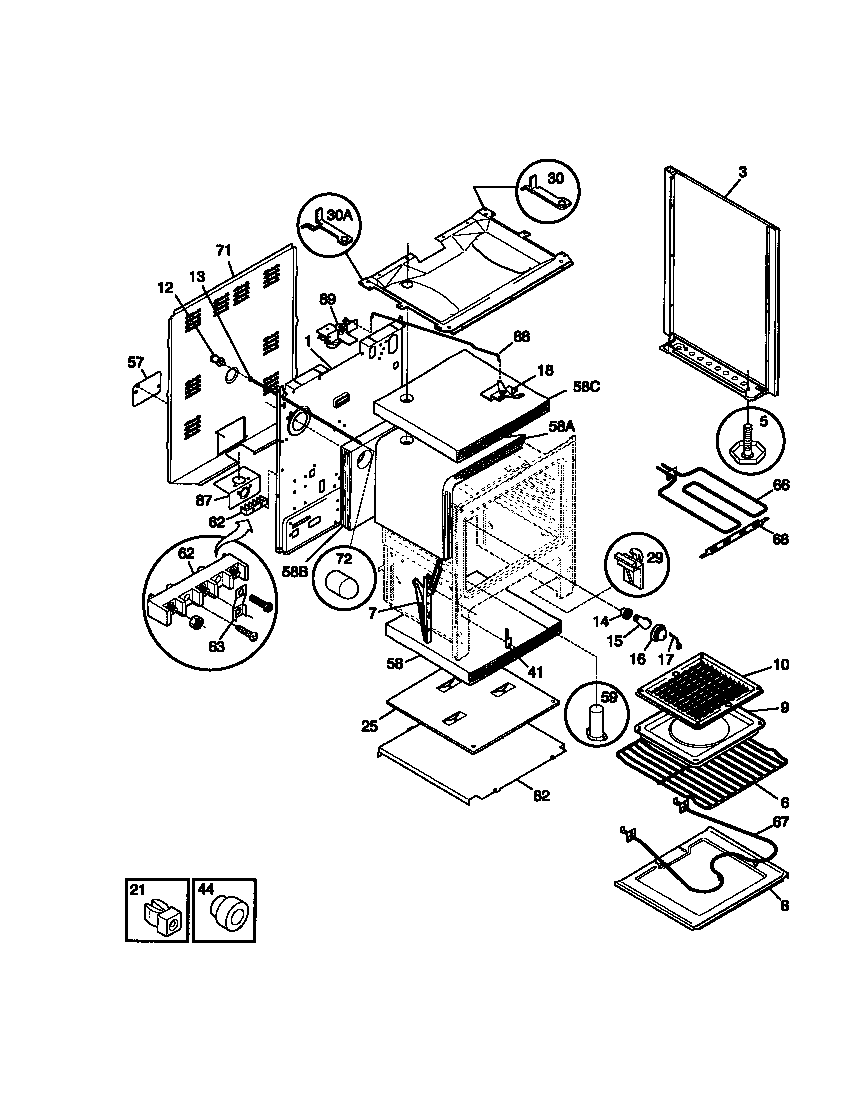

31-3982-23-02 03 – BODY

Products

PositionProduct
*82765WCI 5303281584
*827623203550 Frigidaire Oven Plug
*82763WCI 316075400
*82764316205500 Frigidaire Oven Nut
1WCI 316029410
3WCI 316081006
3WCI 316081007
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BFASTENER-EDGE MTG (NOT ILLUSTRATED)
4WCI 5303271756
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5BWCI 3934058
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57COVER-ACCESS
58WCI 316054200
58INSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
58INSULATION, OVEN TOP
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028100
