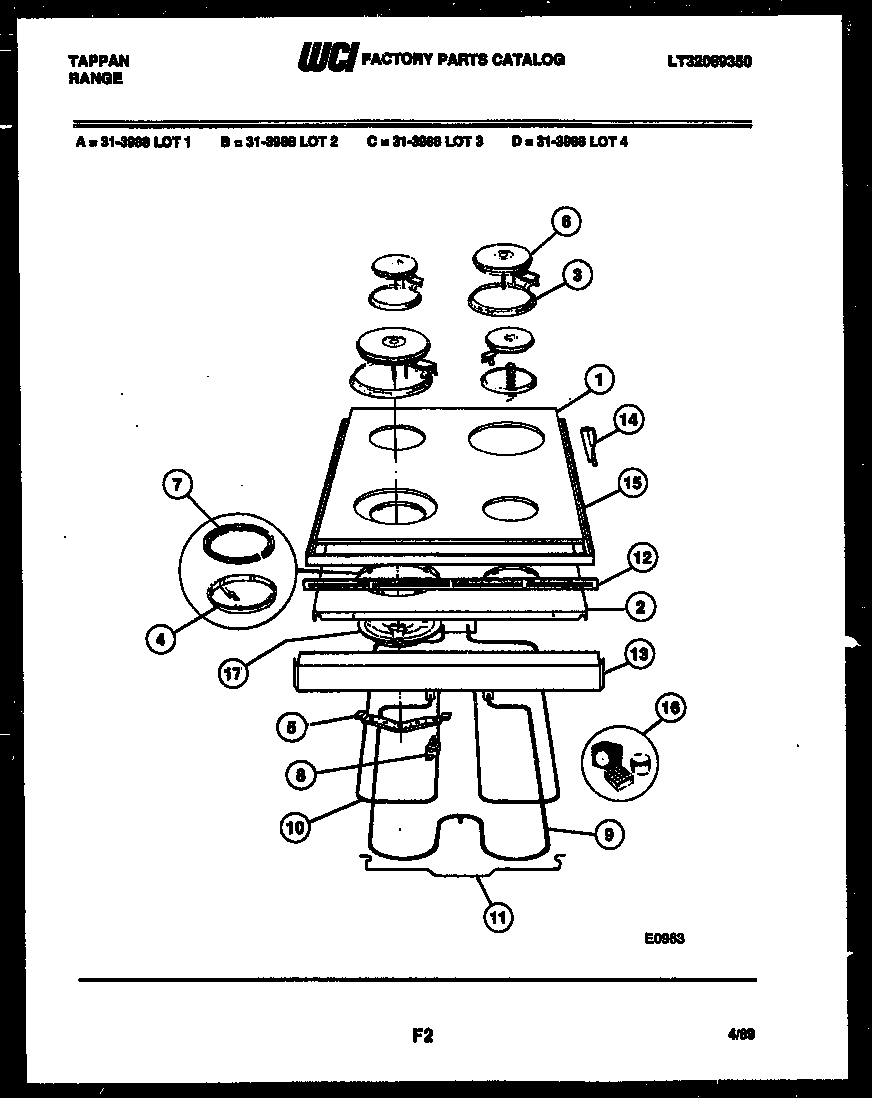

31-3988-00-01 05 – COOKTOP AND BROILER PARTS

31-3988-00-01 05 – COOKTOP AND BROILER PARTS

Written by

in

31-3988-00-01 05 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3051156
2WCI 3018329
3BTRIM-RING INNER LARGE
3ATRIM-RING OUTER MED
3TRIM-RING OUTER SMALL (2)
4BWCI 3051339
4TRIM-RING INNER SMALL (2)
4ATRIM-RING INNER MED
5CHANNEL-TOP ELEMENT MOUNTING LARGE
5ACHANNEL-TOP ELEMENT MOUNTING SMALL (2)
6AGLASS-FRONT-BLACK
6ELEMENT-TOP SMALL (2)
6BWCI 3051144
7WCI 3018330
7SEAL-TOP ELEMENT MED
7ASEAL-TOP ELEMENT LARGE
8SWITCH-THERMAL PROTECTOR (4)
9ELEMENT, OVEN BAKE
105303051140 Frigidaire Broil Element
11316203400 Frigidaire Oven Support
12WCI 740T390P01
13WCI 3051870
14BRKT MAIN TOP HNG LH
14ABRKT MAIN TOP HNG RH
15WCI 3051325
16CLEANER-ELEMENT
17SHIELD-ELEMENT AUTO
