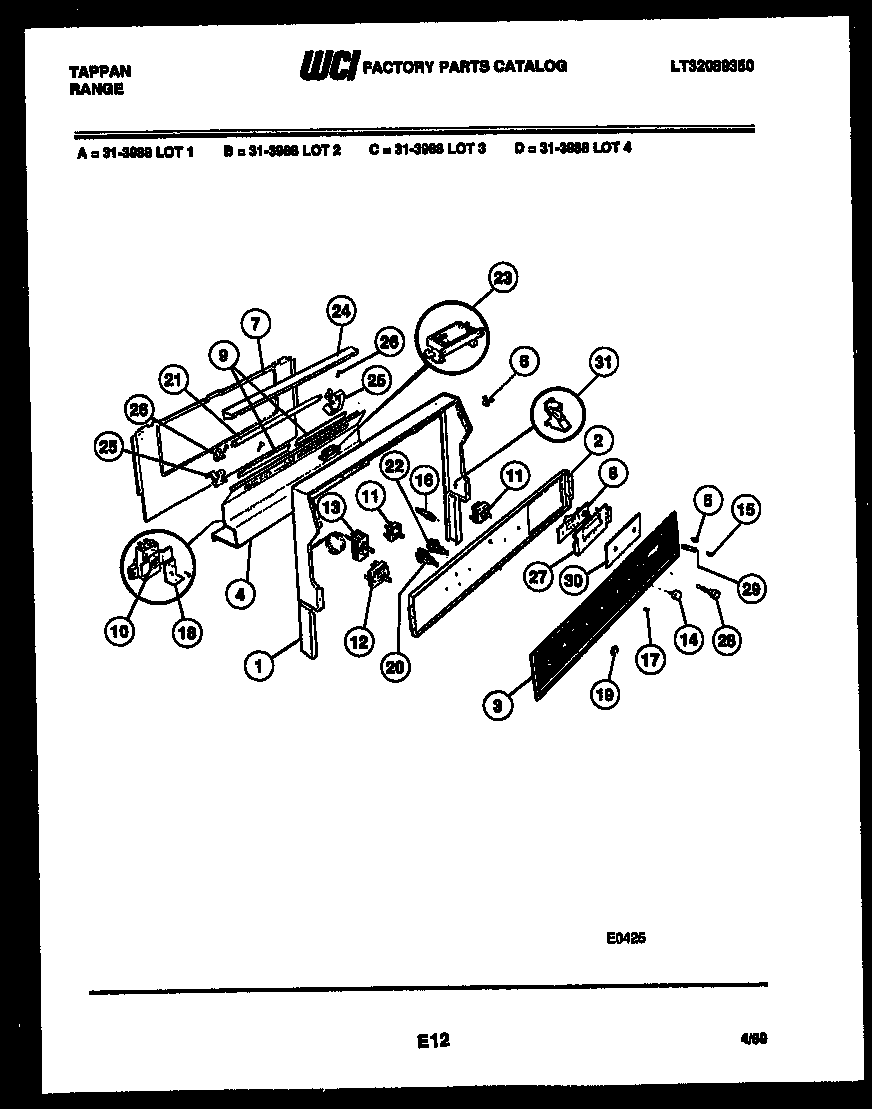

31-3988-23-01 02 – BACKGUARD

31-3988-23-01 02 – BACKGUARD

Written by

in

31-3988-23-01 02 – BACKGUARD

Products

PositionProduct
1WCI 3131436
2PLATE-INSTR MTG
3WCI 3051871
4WCI 5303210605
5NUT – DECOR (2)
6FSTNR-GLASS(2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3131722
9GLASS-WORK LITE (2)
10WCI 3015183
11SWITCH S/U (4)
11ATHERMO, TOP TEMP CTRL, 8“ ELEM
12WCI 3051315
13THERMO-OVEN
14BKNOB-THERMO.
14AWCI 3051490
14KNOB-TOP ELM (4)
14CWCI 3015335
15WCI 358T206P01
15BSCREW-DOOR MTG (4) (NON-ILLUSTRATED)
16AINDICATOR LIGHT (4)
16INDICATOR-LITE OVN
17AINDICATOR LIGHT
17WCI 342T017P01
18ANGLE-S/C THERM. MTG
19WCI 045T071P01
20SWITCH-OV LT
21BULB-FLUOR
22SW.-FLUOR. LT.
23WCI 3051115
24WCI 3015336
25BRKT-FLUOR LT MTG LH
25ABRKT-FLUOR LT MTG RH
26ARECEPTACLE-FLU LT RH
26RECEPTACLE-FLU LT LH
27WCI 3131556
28WCI 3131730
29WCI 3131508
30WCI 3051161
31SUPPORT-BACKGUARD (2)
