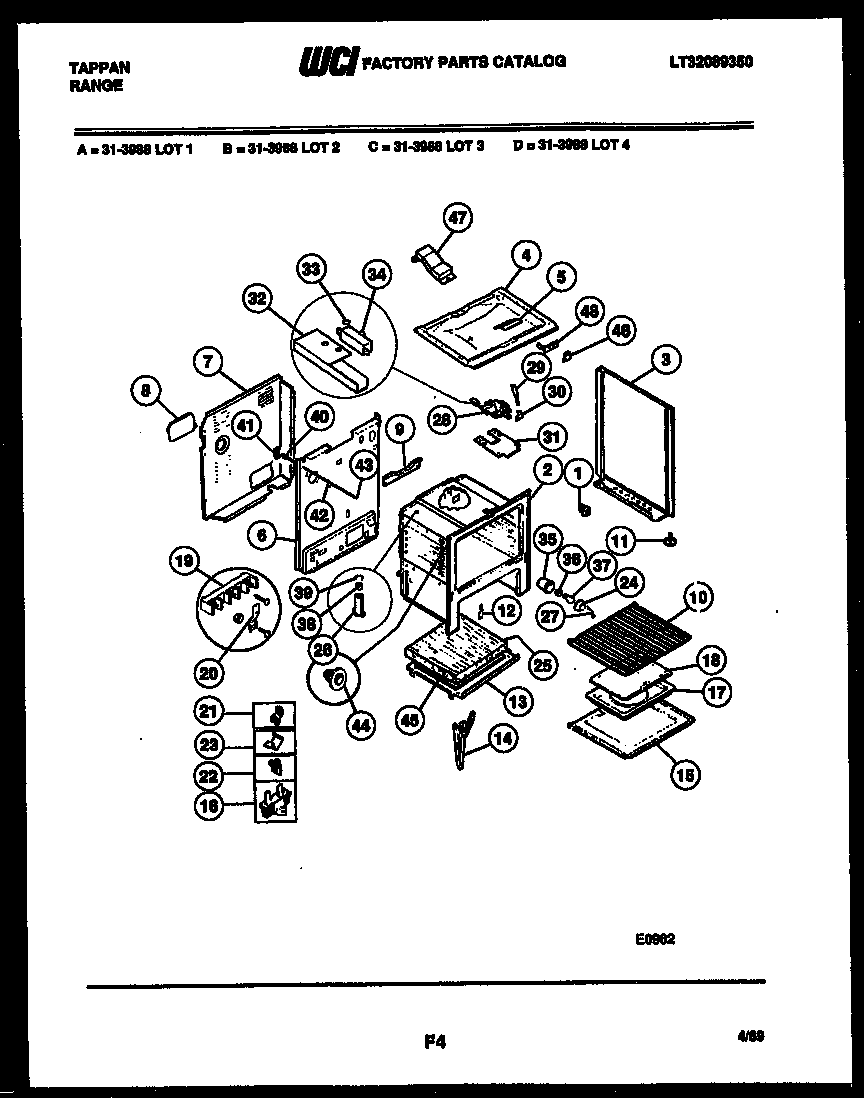

31-3988-23-02 06 – BODY PARTS

Products

Position	Product
*15945	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*15945	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*15945	INSULATION, OVEN WRAPPER
*15945	316403803 Frigidaire Insulation
1	WCI 665T188P02
3	WCI 3201000
3A	WCI 3201001
3A	PANEL B/S-RH BLACK
3	PANEL B/S-LH BLACK
3A	PNL B/S-LH (ALMOND)
3	PNL B/S-RH (ALMOND)
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	COVER, LOWER ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	WCI 3051104
16	FUSE-THERMAL CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
26	TRIM MAIN TOP LH
27	WCI 3131104
27D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27E	WCI 47T069P41
27C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 3015361
29	WCI 296T101F06-08
30	WCI 358T158S02
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	WCI 241T001P01
34	SWITCH-LATCH
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	WCI 374T108P05
38	WCI 244T041P01
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 174T329P01
44	BUTTON-REMOTE SW
45	WCI 3200848
45A	INSULATION, OVEN TOP
46	3205821 Frigidaire Clip
47	WCI 3051254
47A	WCI 3015337
48A	WCI 3051243
48	WCI 3051242
