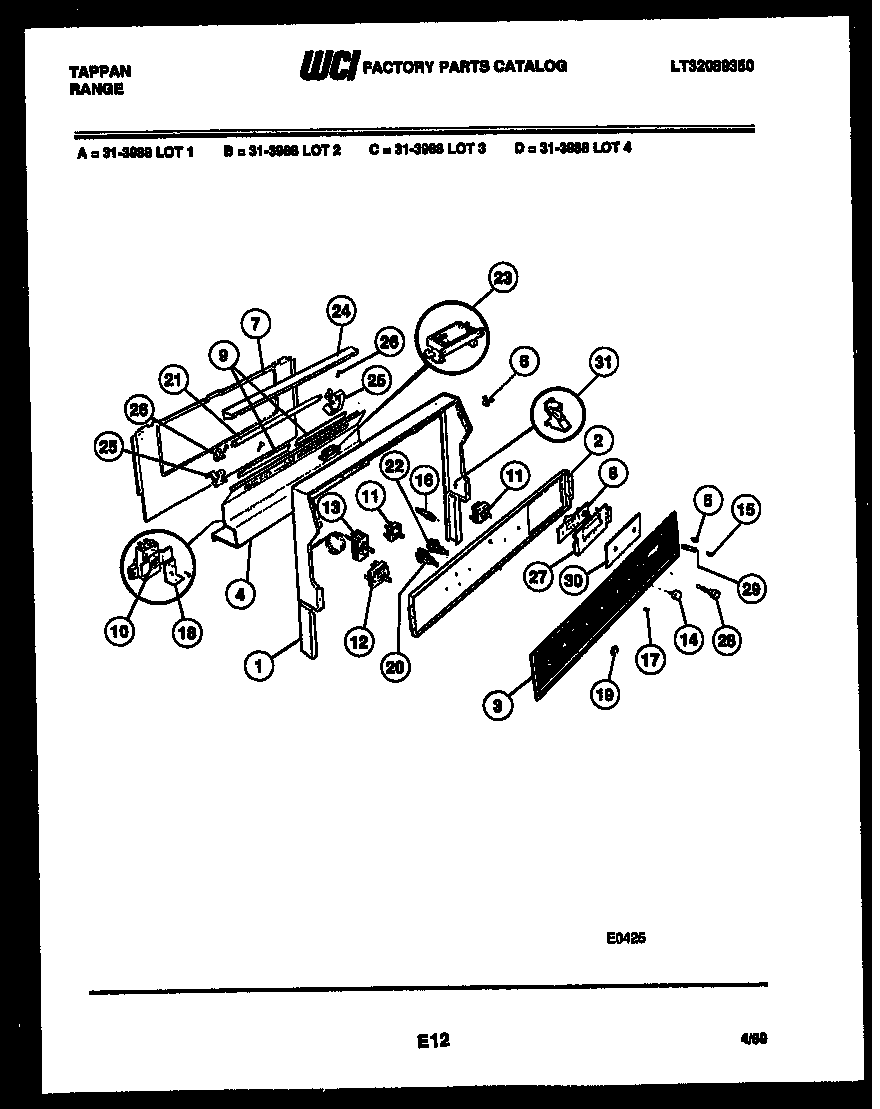

31-3988-23-03 02 – BACKGUARD

Products

Position	Product
1	WCI 3131436
2	PLATE-INSTR MTG
3	WCI 3201837
4	WCI 5303210605
5	NUT – DECOR (2)
6	FSTNR-GLASS(2)
7	SHIELD-BACKGUARD,REAR WALL
8	ELECTRIC CLOCK
9	GLASS-WORK LITE (2)
11	SWITCH S/U (4)
11A	THERMO, TOP TEMP CTRL, 8“ ELEM
12	WCI 3201732
13A	THERMOSTAT, OVEN
14B	WCI 3201797
14C	WCI 3015335
14A	WCI 3201798
14	KNOB-TOP ELM (4)
15B	SCREW-DOOR MTG (4) (NON-ILLUSTRATED)
15	WCI 358T206P01
16B	INDICATOR LITE, OVEN (BLACK)
16	LIGHT/LAMP, INDICATOR, BLUE, 250 V
16A	INDICATOR LIGHT-LOCK (1)
17	WCI 342T017P01
17A	INDICATOR LIGHT
19	WCI 045T071P01
20	SWITCH-OV LT
21	BULB-FLUOR
22	SW.-FLUOR. LT.
23	WCI 3051115
24	SHIELD – FLUOR. LT
25	BRKT-FLUOR LT MTG LH
25A	BRKT-FLUOR LT MTG RH
26A	RECEPTACLE-FLU LT RH
26	RECEPTACLE-FLU LT LH
27	WCI 3131556
28	WCI 3131730
29	WCI 3131508
30	WCI 3051161
31	SUPPORT-BACKGUARD (2)
