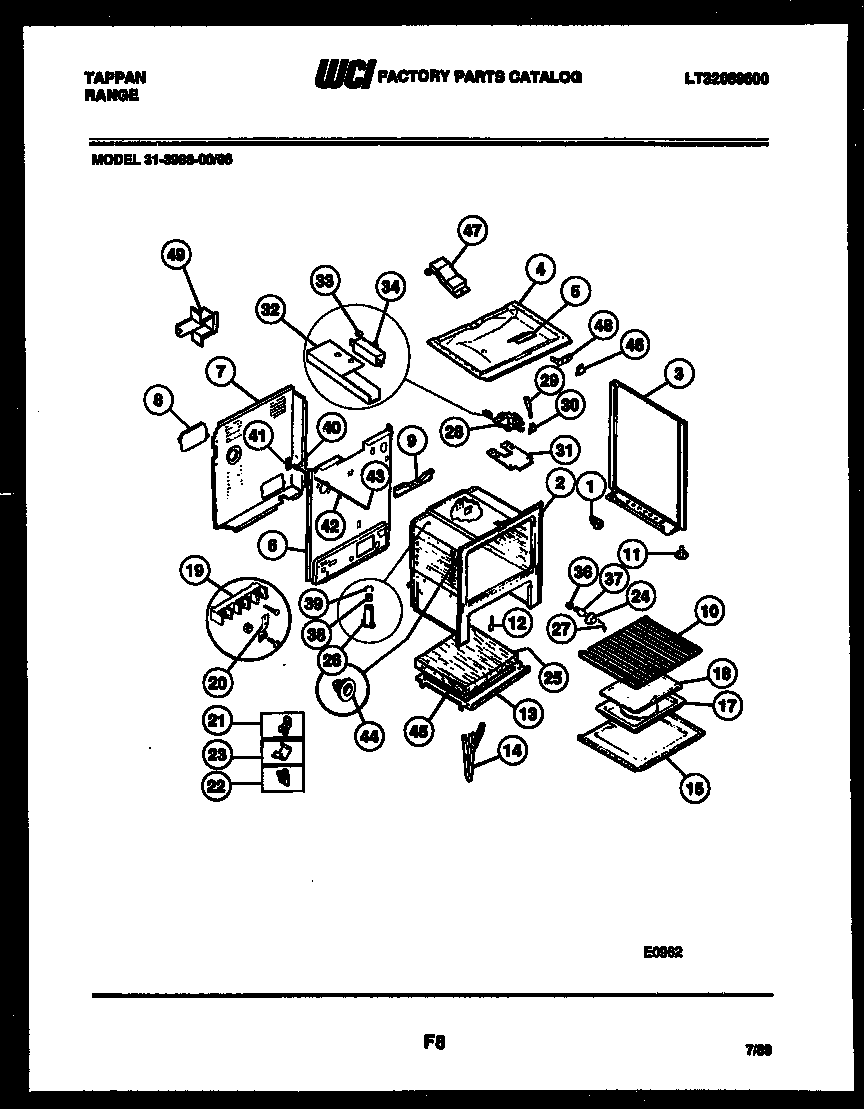

31-3988-23-05 06 – BODY PARTS

Products

Position	Product
*26706	3203550 Frigidaire Oven Plug
1	WCI 665T188P02
3A	WCI 3201001
3	WCI 3201000
3A	PNL B/S-LH (ALMOND)
3	PNL B/S-RH (ALMOND)
4	WCI 3051109
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	TRIM MAIN TOP LH
27B	3131903 Frigidaire Door/Drawer Bumper
27D	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27A	INSULATION OVEN BACK (NON-ILLUSTRATED)
27C	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27	RETAINER-GLASS
28	WCI 3015361
29	WCI 296T101F06-08
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
30	WCI 358T158S02
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	WCI 241T001P01
34	WCI 3131672
36	316116400 Frigidaire Oven Light Socket
37	WCI 374T108P05
38	WCI 244T041P01
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 174T329P01
44	BUTTON-REMOTE SW
45	WCI 3200848
45A	INSULATION, OVEN TOP
46	3205821 Frigidaire Clip
47A	WCI 3015337
47	WCI 3051254
48A	WCI 3051243
48E	ANTI-TIP KIT (NOT ILLUSTRATED)
48	WCI 3051242
48B	INSULATION, OVEN WRAPPER
48C	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
48D	FASTENER-EDGE MTG (NOT ILLUSTRATED)
49	WCI 3203582
