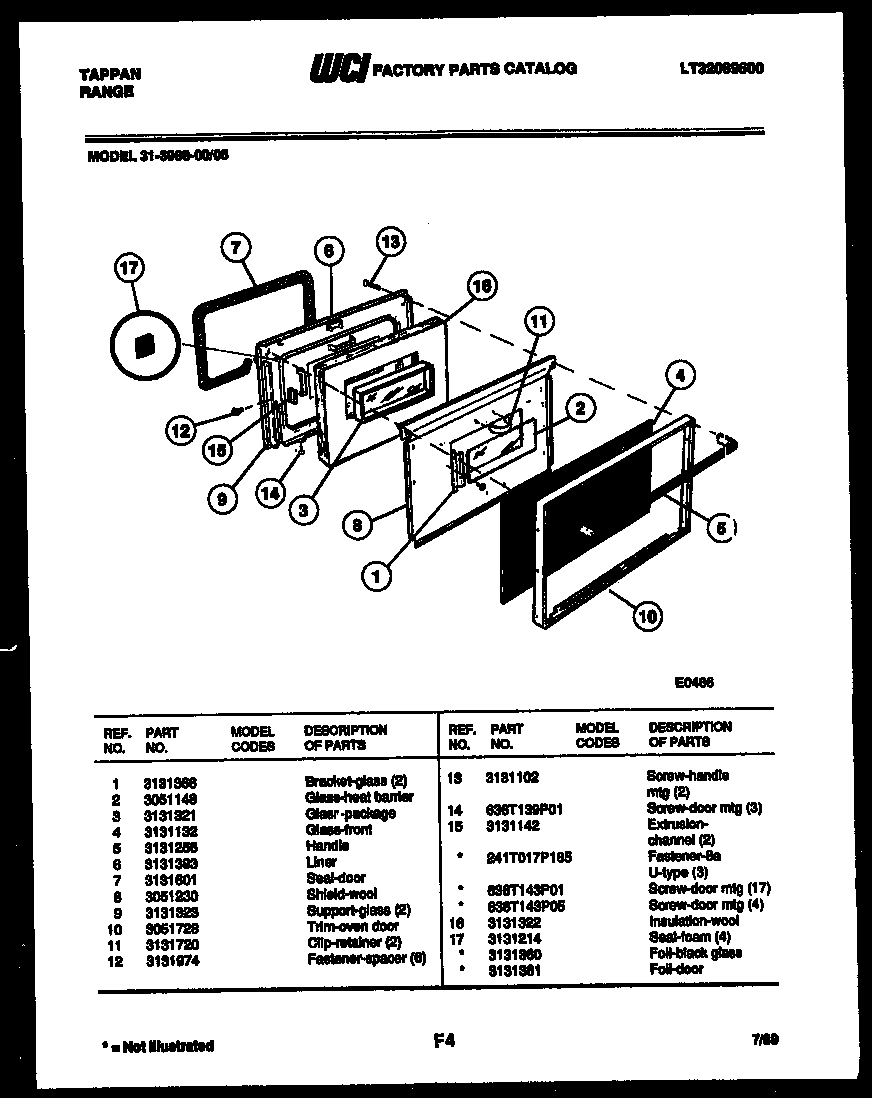

31-3988-66-05 03 – DOOR PARTS

Products

Position	Product
*26694	5303208655 Frigidaire Reflector Assembly
*26694	ALUM FOIL-B/G GLASS
1	BRKT GLASS (2)
2	WCI 3051148
3	WCI 3131321
4	GLASS FRNT
5	WCI 3131256
6	WCI 3131393
7	5303131601 Frigidaire Oven Seal
8	WCI 3051230
9	SUPPORT, GLASS
10	WCI 3051728
11	CLIP-RETAINING
12	FSTNR. SPACER (6)
13	SCREW-HANDLE
14	SCREW-DR ASSY 8-18 X 1/2`` PH WR HD SPC (3)
15B	SCREW-DOOR MTG (4) (NON-ILLUSTRATED)
15A	FSTNR 8AU TYPE (3)
15	EXTRUSION-CHANNL
15B	5303300265 Frigidaire Oven Screw
16	WCI 3131322
17	SEAL, FOAM (4)
