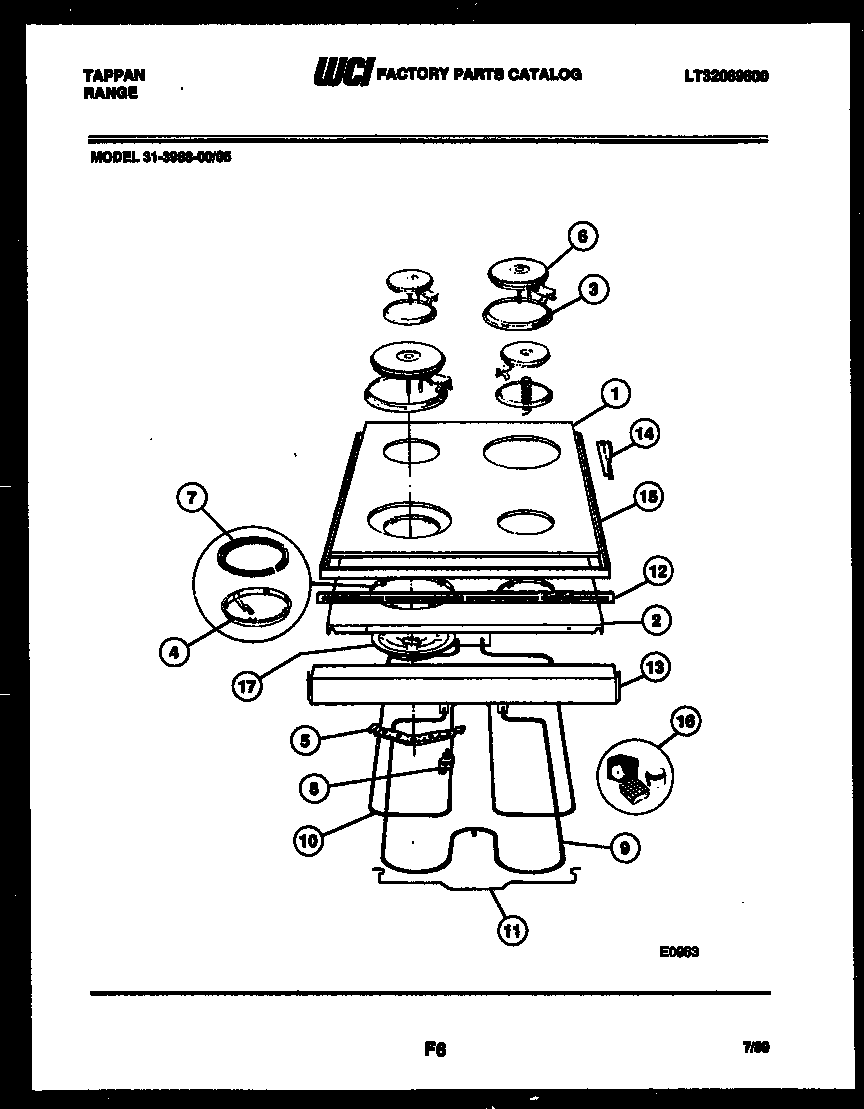

31-3988-66-05 05 – COOKTOP AND BROILER PARTS

Products

Position	Product
1	WCI 3051156
2	WCI 3018329
3B	TRIM-RING INNER LARGE
3A	TRIM-RING OUTER MED
3	TRIM-RING OUTER SMALL (2)
4B	WCI 3051339
4	TRIM-RING INNER SMALL (2)
4A	TRIM-RING INNER MED
5	CHANNEL-TOP ELEMENT MOUNTING LARGE
5A	CHANNEL-TOP ELEMENT MOUNTING SMALL (2)
6A	GLASS-FRONT-BLACK
6	ELEMENT-TOP SMALL (2)
6B	WCI 3051144
7	WCI 3018330
7	SEAL-TOP ELEMENT MED
7A	SEAL-TOP ELEMENT LARGE
8	SWITCH-THERMAL PROTECTOR (4)
9	316075103 Frigidaire Oven Bake Element
10	5303051140 Frigidaire Broil Element
11	316203400 Frigidaire Oven Support
12	WCI 740T390P01
13	WCI 3051870
14	BRKT MAIN TOP HNG LH
14A	BRKT MAIN TOP HNG RH
15	WCI 3051325
16	CLEANER-ELEMENT
17	SHIELD-ELEMENT AUTO
