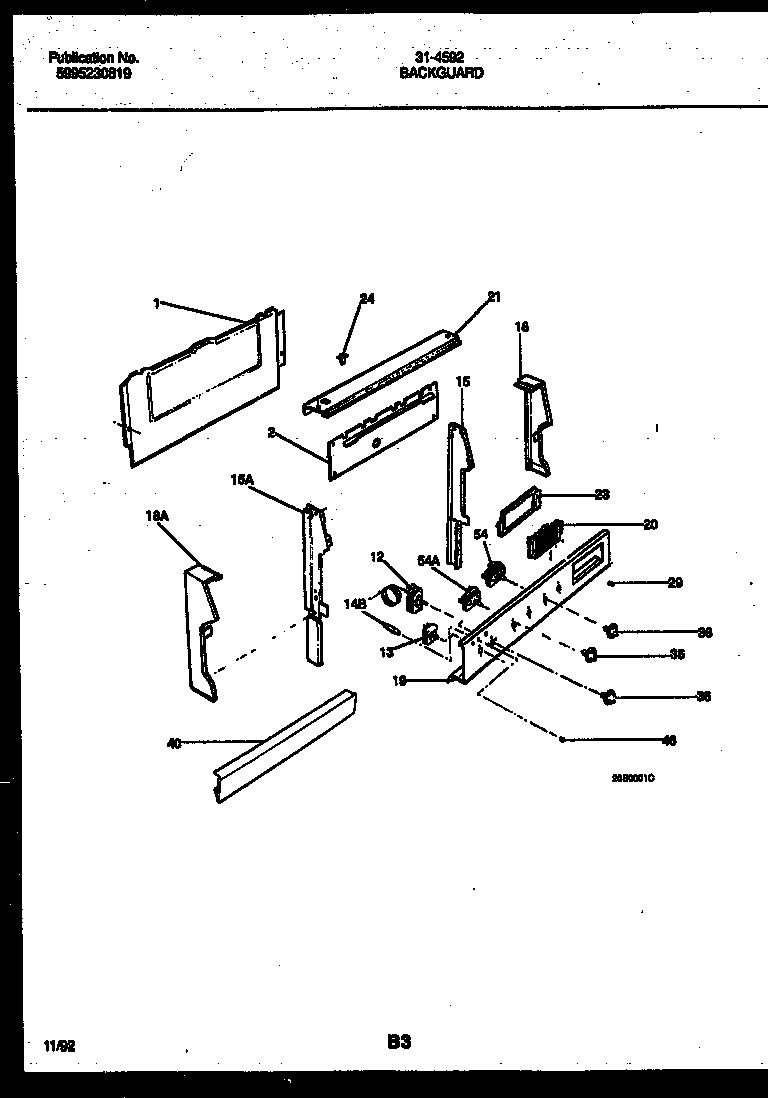

31-4592-23-01 02 – BACKGUARD

31-4592-23-01 02 – BACKGUARD

Written by

in

31-4592-23-01 02 – BACKGUARD

Products

PositionProduct
1SHIELD-BACKGUARD, REAR WALL
2WCI 316015905
12THERMOSTAT-OVEN
13WCI 316023200
14BLIGHT/LAMP, IND, HOT SURFACE
14B316022503 Frigidaire Light Lamp P-1
15BWCI 5303288574
15WCI 316023102
15AWCI 316023103
18CAP-END-RH
18ACAP-END-LH
19WCI 316014707
20CLOCK/TIMER, ANALOG 3 STEM
21WCI 316014801
23WCI 316015001
245308015487 Frigidaire Switch-Oven Light
29KNOB-CLOCK
36WCI 316015200
40WCI 316009254
46WCI 316040200
46LENS-LIGHT/LAMP, INDICATOR
545303935086 Frigidaire Oven Top Burner Switch Kit
54A316436001 Frigidaire Oven Range Infinite Burner Switch
